Car key shell guide for fit, replacement decisions, and common housing problems

A car key shell—also called a key fob shell or outer housing—holds the internals of a car key remote and shapes the buttons and blade. Fit and results depend on your key's design, like button layout and blade/hinge style. This guide sticks to shell-level choices for replacement and troubleshooting.

Key choices cover shell parts, compatibility for fit checks, replacement mechanics, and typical housing problems. Issues like loose closure or dead buttons from bad fit differ from electronics or battery faults. Here's what matters:

• Shell basics: outer housing, button layout, closure points, blade/hinge area.
• Fit match: outline, button layout, blade/hinge, internal mounts.
• Replacement transfer: internals to new housing, alignment, reassembly.
• Housing problems: looseness, cracks, buttons failing from misalignment.
• Cost factors: fit accuracy, durability against rework.

Begin at the Car key shell hub before compatibility or replacement details.

Car key shell basics: what counts as the shell and what a housing-only fix can and cannot solve

A car key shell is the outer housing that holds the button interface and physical fit points around the key internals.

The shell consists of shell halves secured by clips or screws along a seam for closure. It protects these internals while influencing button feel through the button pad and overall stability via fit points. What counts as the shell includes these external housing elements but stops at the boundary before the electronics.

A housing-only fix changes the physical enclosure and symptoms like poor closure or rattle when the issue is housing-related.

The fix preserves the internals by transferring them to the new shell, potentially restoring button responsiveness through better button pad alignment and seating. However, it generally cannot address electronics or battery issues if those are the root cause. Many assume a new shell fixes every non-working key symptom, but that myth overlooks cases where internals are the root cause.

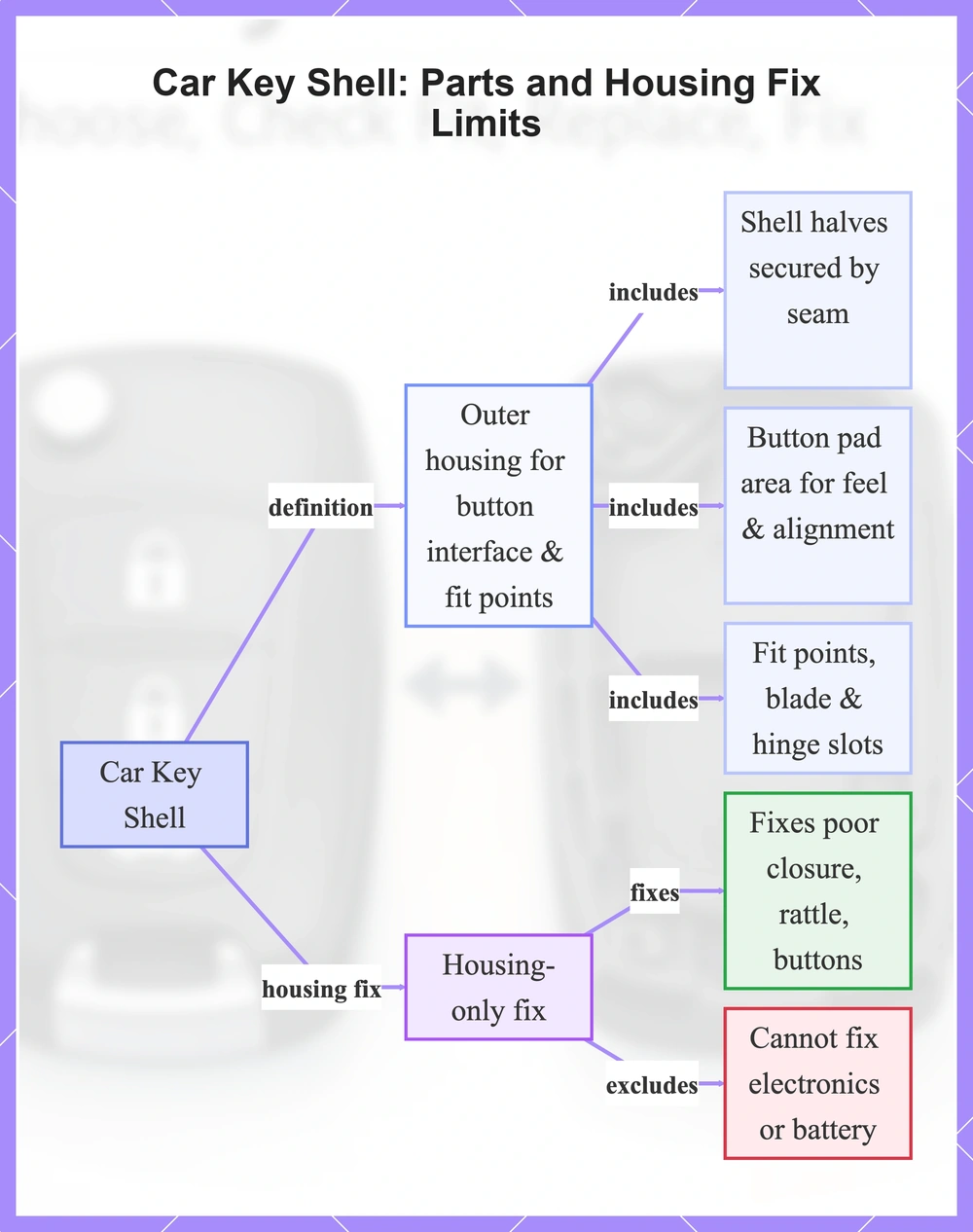

This flowchart defines the car key shell, its key parts, and what a housing-only fix can and cannot address.

Car key shell vs key case vs key cover differences that affect fit and protection

Shells, cases, and covers differ by attachment method and impact on button access and protection in daily use. Shells require internal transfer into new housing for button pad alignment, while cases and covers add external protection without changing internals. Internal transfer calls for a shell; external protection may use a case or cover.

Choosing the right replacement car key shell using type, durability, and quality signals

Match the form factor type when picking a car key shell, and check build quality signals like molding tolerance and closure method. Put these ahead of looks to lower fit risks. Button feel and durability cues point to shells less prone to cracks and looseness. Good build quality helps maintain fit stability with aligned seams and internals.

People often go for shells based on looks, which can lead to looseness or unresponsive buttons. Spot even seam lines, firm clips or screws, and smooth button travel in photos to gauge shell quality. For detailed selection logic, see the How to choose a Car key shell guide. Double-check match points in listing photos and steer clear of vague compatibility claims hiding molding tolerance problems.

• Form factor matchability: Check overall shape and button layout for alignment to avoid gaps.
• Closure type consistency: Look for clips or screws that seat evenly.
• Button travel feel: Check for smooth movement suggesting button pad alignment.
• Seam alignment: Look for tight molding tolerance without steps or waves.
• Clip or screw robustness: Check for firm fasteners resisting stripping or play.
• Included button pad relevance: Note if pad matches or separate replacement fits.
• Finish durability: Check matte or textured surfaces resisting wear and cracks.
• Red-flag listings: Avoid fuzzy internals photos or generic fit promises.

A cheap shell might save money upfront but could crack soon and need rework, unlike a durable one that holds up longer despite the cost. Focus on cues that cut looseness risk. Run compatibility checks next to dodge wasted buys.

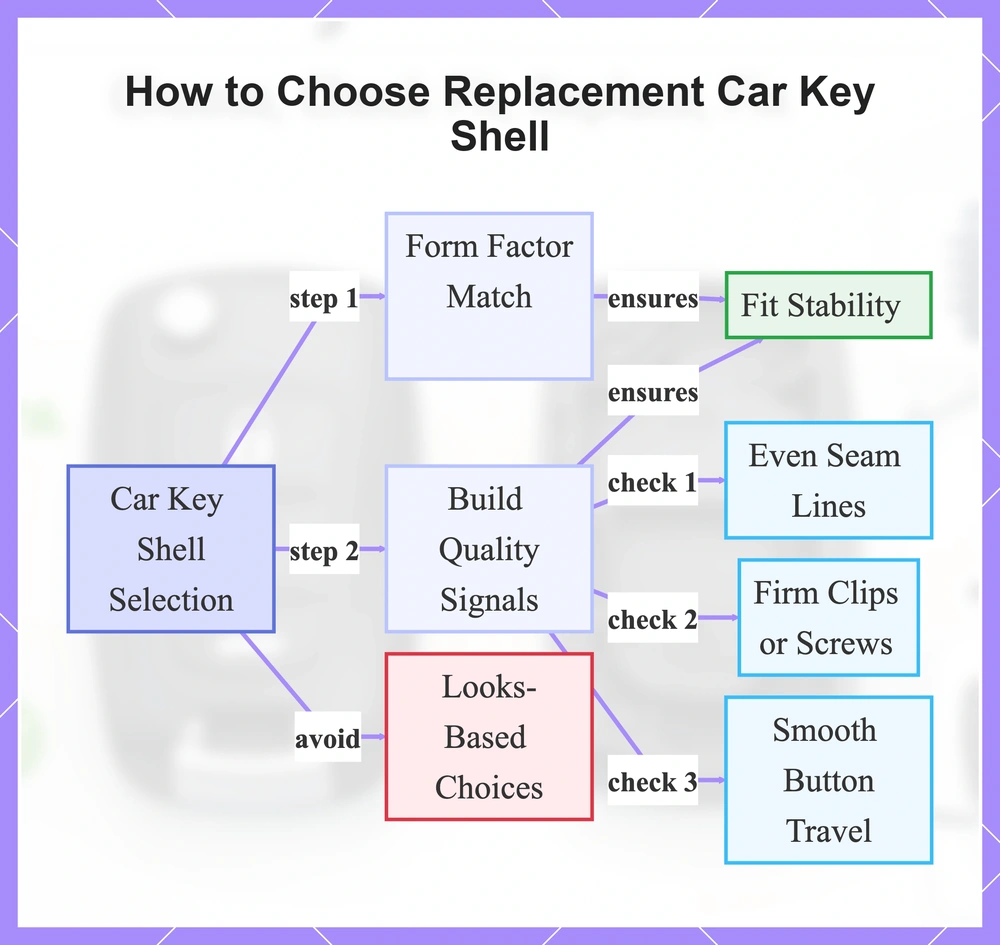

This flowchart outlines priority checks for form factor and build quality signals to ensure durability and fit when selecting a car key shell.

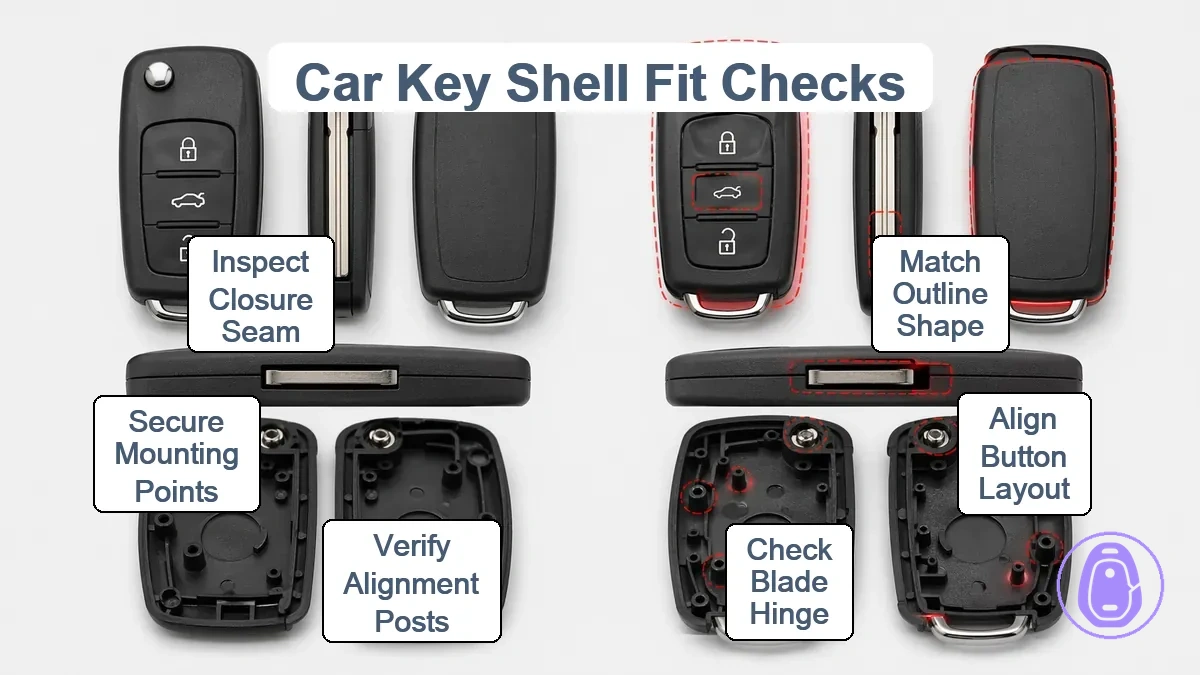

Fit and compatibility checks before buying a car key shell: what must match

A car key shell works as proper housing only if its physical features match your original key's dimensions and layout. Compatibility depends on outline/shape, button layout, blade/hinge areas, and internal mounting points that secure the components. These must line up to prevent gaps, misalignment, or faulty closure. For more details, see Car key shell compatibility and fit checks.

Shells that look alike often fail from unseen fit mismatches. Line up listing photos next to your key and check visual cues such as spacing and slots.

Mismatches look like uneven edges or loose internals. Even similar shells can flop on alignment posts or button interfaces inside.

Q1: Can I buy a shell that looks the same but has different buttons?

No, the button layout usually has to match closely so the pad aligns and presses right. Offsets in count, spacing, or placement block contact with internals and cause dead buttons, shape aside. Check button layout with side-by-side photos aimed at pad fit.

Q2: Do I need to match the blade/hinge style exactly?

Yes, blade slot and hinge pivot generally match for solid fit and action. Wrong blade or hinge can lead to wobble or no-close, based on flip or fixed design. Line up clear listing shots with your key.

• Shape/outline: Compare overall profile and edges; mismatch creates visible gaps or overhang.
• Check length and width alignment; too narrow or wide can prevent internals from seating.
• Verify curve or straight edges; differing contours lead to poor closure seam fit.
• Buttons: Match button layout positions and spacing; offset causes button pad misalignment.
• Confirm button pad area depth; shallow pads result in unresponsive presses.
• Inspect button count and shape; extra or missing buttons disrupt internal contact.
• Blade/hinge: Align blade slot size and position; wrong slot blocks blade insertion.
• Match hinge pivot location; offset hinge causes flip failure or rattle.
• Verify blade groove type; flat vs curved mismatch prevents secure hold.
• Internals/closure: Check alignment posts presence; missing posts allow component shift.
• Compare mounting points for internals; uneven points lead to loose fit.
• Examine closure seam tolerance; wide seams indicate poor clip or screw match.

Caution: Do not assume a shell fits just because it looks similar externally—always verify internal alignment posts, mounting points, and button pad details to prevent fit failures.

Quick fit checklist for shell outline, button layout, blade or hinge style, and internal mounting points

This quick checklist confirms car key shell fit before purchase. Compare your current shell to photos for side-by-side checks on these points. Even if the shell looks like a match overall, re-check internal mounting points when closure or button alignment seems off.

• Outline: Compare overall shape—a mismatch may cause uneven seam or gap.
• Outline: Match edge contours closely; differences often lead to seam closure issues.
• Button layout: Verify button spacing; wrong spacing may misalign button pad presses.
• Button layout: Confirm button positions align; offset layout can cause unresponsive buttons.
• Blade/hinge: Align blade slot geometry; mismatch may prevent proper blade seating.
• Blade/hinge: Check hinge pivot location; variation can hinder flip or fold action.
• Mounting points: Inspect alignment posts; misaligned posts may create rattle or looseness.
• Mounting points: Examine internal fit points; poor match can affect internals seating.
• Mounting points: Look for closure seam gaps; gaps suggest mounting points mismatch.

Double-check internal posts and button pad alignment when visuals look close but alignment seems uncertain. Subtle mismatches often hide there.

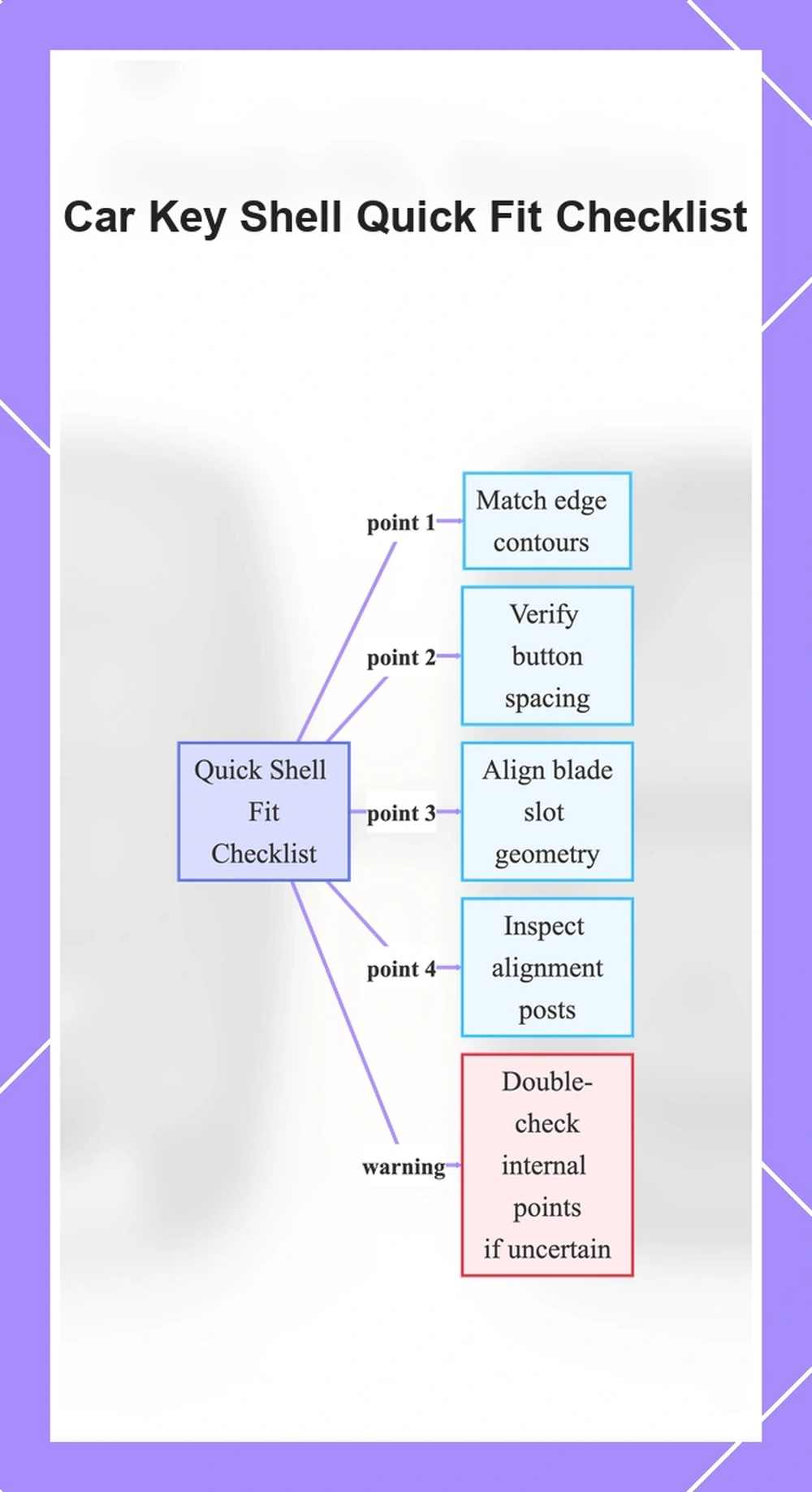

This flowchart details the key checklist points to verify car key shell compatibility by photo comparison before purchase.

Replacing a car key shell without damaging internal components

Replacing a car key shell requires careful handling to protect the internals during opening, transfer, and reassembly. Start with a confirmed compatible shell and work in a clean, well-lit area to avoid losing small parts. The process centers on gentle clip handling, correct button pad seating, stable positioning of internals, and closure confirmation before final tightening. Work slowly to prevent slips that could scratch the circuit board or displace components.

Common risk points include damaging the circuit board or transponder chip during opening, as these parts sit close to clips and screws. The button pad can tear if pulled instead of lifted evenly, while internals may shift if not held steady during transfer. What is safe to handle includes the outer shell halves and visible screws, but alignment posts need careful seating to avoid gaps later. For Car key shell replacement steps with more detail, see the dedicated guide before proceeding to the ordered process below.

Confirm all internals are accounted for before starting reassembly, and stop if any part does not seat naturally.

1. Open the shell by gently separating the clips or removing screws with a suitable tool, keeping pressure even to avoid cracking the housing.
2. Lift out the internals as a unit where possible, supporting the circuit board to prevent bending.
3. Transfer internals to the new shell, placing the transponder chip into its spot.
4. Seat the button pad correctly over the switches, ensuring even alignment for responsiveness.
5. Position the circuit board onto alignment posts, verifying it sits flush.
6. Insert or align the blade or hinge, checking movement for smoothness before full enclosure.
7. Reassemble by snapping clips or tightening screws gradually, then perform a closure check along the seam.
8. Verify button feel by pressing each one for tactile feedback, and test blade or hinge movement where applicable to check for binding or looseness.

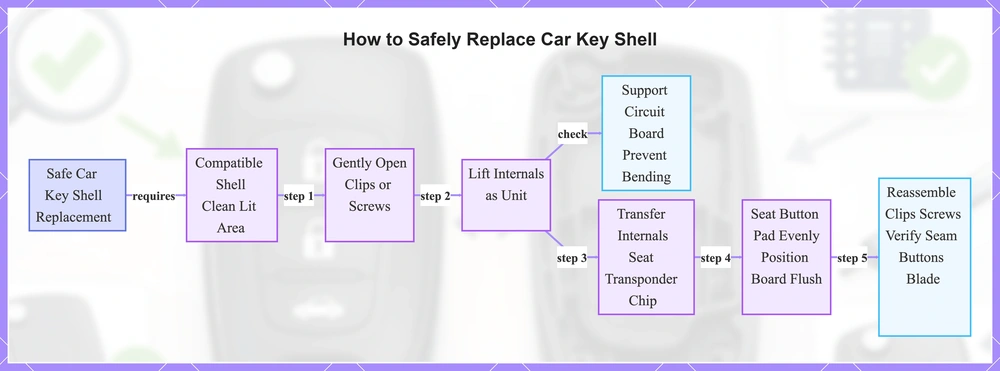

This flowchart shows the step-by-step process for replacing a car key shell while protecting internals through gentle handling, key checks, and verifications.

Replacement mistakes that cause poor closure, looseness, or unresponsive buttons

Assembly mistakes during car key shell replacement often lead to poor closure, looseness, or unresponsive buttons because they prevent proper mechanical alignment and contact between parts. Observable symptoms help spot these mistakes for safe corrections. Do not force closure, as this can worsen misalignment or crack components.

• Mis-seated button pad can cause unresponsive buttons from poor contact travel; gently lift and reseat the pad for even pressure.
• Pinched components between shell halves may lead to gaps or rattle from uneven pressure; remove internals, unpinch, and reposition smoothly.
• Missed alignment posts can prevent secure closure and create gaps around the seam; check posts visually and align them before reassembly.
• Damaged clips can fail to hold halves together, resulting in looseness or poor closure; inspect clips for bends and replace if cracked.
• Wrong screw size or over-tightening can strip threads and cause rattle; use exact match screws and tighten gradually by hand first.
• Misaligned shell halves can produce visible gaps and unresponsive buttons from shifted button pad; realign seams evenly without pressure.
• Not seating internals fully can lead to looseness and rattle inside; press internals into place using alignment posts as guides.
• Insufficient clip engagement may cause intermittent poor closure; verify clips snap fully without forcing the halves.

Parts that do not align require reassessing fit rather than forcing closure.

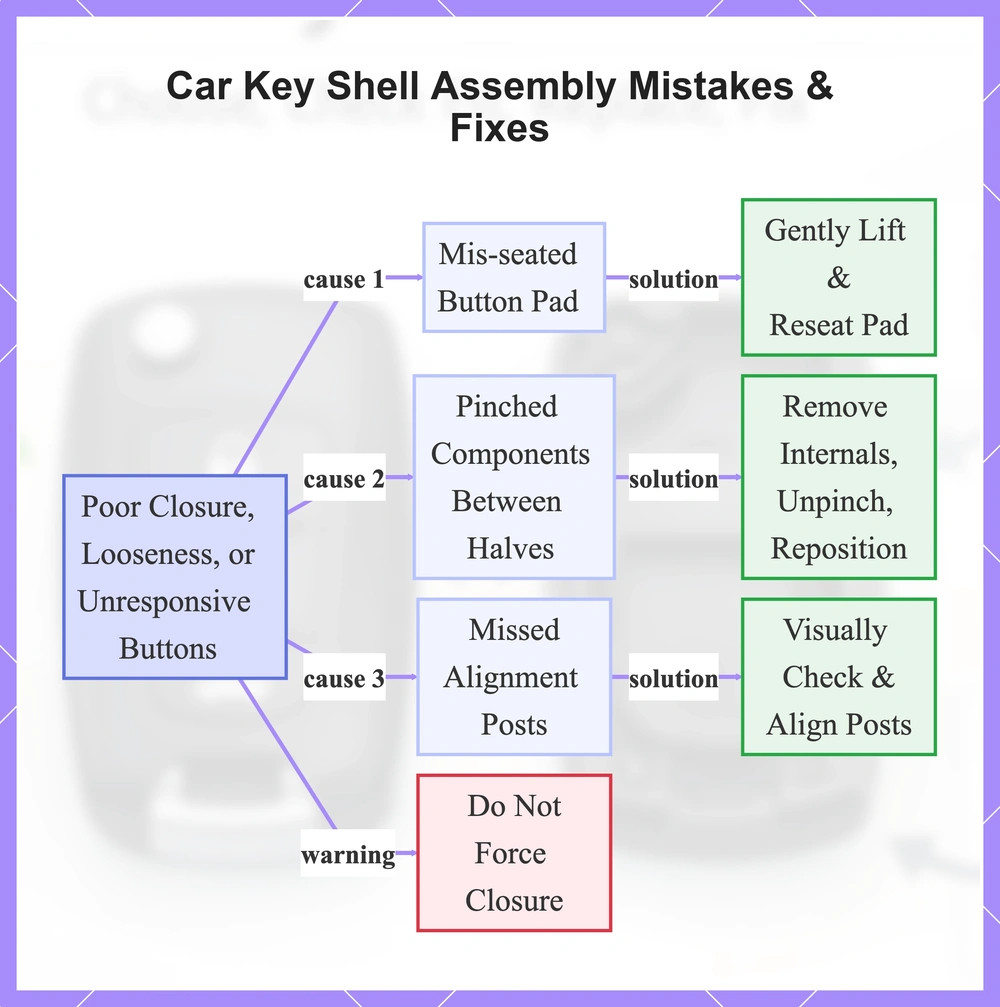

This flowchart identifies common assembly mistakes causing poor closure, looseness, or unresponsive buttons during car key shell replacement, with targeted corrections.

Troubleshooting common car key shell problems using symptom-based diagnosis

Troubleshoot car key shell problems by matching each symptom to a likely physical cause in the housing, then perform a safe first check. Focus only on shell-level issues like button alignment, closure fit, and internal seating—not electronics or batteries. For more options on Car key shell troubleshooting, see the dedicated hub. Resist forcing closure; stop and re-check fit or internal seating to avoid damage.

Q: Why do buttons stop working after a shell swap? Button pad misalignment during reassembly often stops buttons from working. The pad shifts, losing contact with buttons and blocking presses. Check seating and alignment before closing fully.

Q: What if the shell won’t close even when it looks aligned? Internals may obstruct, or clips fail to engage fully. Misplaced parts block the seam despite outer alignment. Check internals and clips step by step without forcing.

How to separate shell-caused symptoms from battery or electronics issues

Spot shell-caused symptoms versus power or electronics issues by comparing physical symptoms—like poor tactile button travel or closure gaps—to non-physical patterns such as intermittent remote behavior.

Physical misalignment patterns often point to shell causes, whereas non-physical patterns may point to non-shell causes.

If you're unsure, review the last physical change after replacement and re-seat components as needed.

• Physical: Tactile button travel mushy or absent (pad alignment from shell); non-physical: total non-response without tactile change (power issue).
• Physical: Closure gap or seam separation (shell-caused with clip problems); non-physical: intermittent range loss without gaps (electronics timing).
• Physical: Rattle or looseness right after replacement (shell internals); non-physical: sudden total failure before shell work (non-shell cause).
• Physical: Button presses lack responsiveness with misalignment (shell button travel); non-physical: sporadic remote function regardless of feel (intermittent electronics).
• Physical: Seam or clip deformation after reassembly; non-physical: consistent non-response across buttons without cues (power causes).
• Physical: Timing of symptoms immediately after shell swap (re-seat errors); non-physical: gradual signal weakening unrelated to changes (non-shell issues).

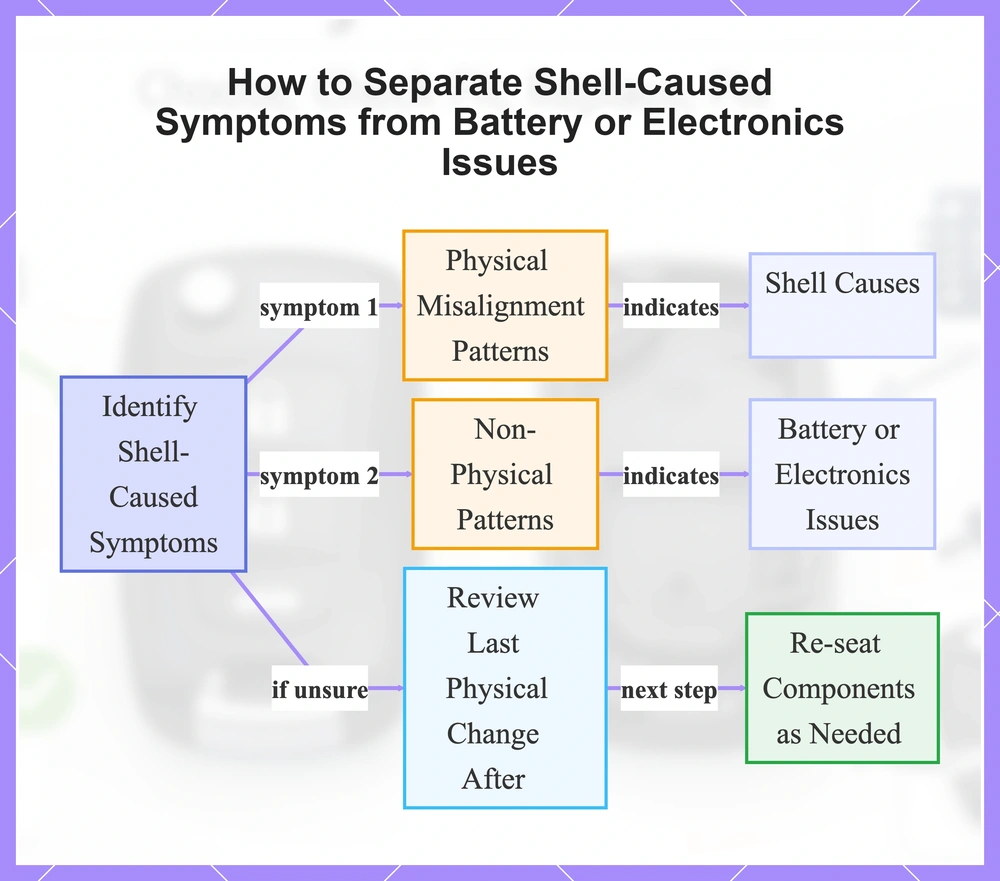

This flowchart shows physical versus non-physical symptom patterns to identify shell causes over battery or electronics issues, plus an unsure case check.

Car key shell cost and value factors, including DIY replacement versus professional help

A car key shell's value depends on cost factors such as fit precision and durability. These can lower risks of wasted purchase or rework.

Fit precision aligns the button pad and internals better and may cut looseness or gaps. Durability resists cracks and wear for longer use. Fit confidence from good matching avoids rework on mismatches.

Picture a worn shell with intact internals but high fit uncertainty. A DIY swap saves on professional help but risks damage during transfer if alignment posts misseat. Poor button pad seating often leads to rework or total failure. See deeper details in the Car key shell cost and value guide. Seek professional help if internal damage risk or uncertainty feels high.

• Quality factor: Fit precision matches outline and mounting points to help reduce wasted purchase risk from mismatches.
• Quality factor: Durability uses robust materials to help prevent cracks and looseness over time.
• Quality factor: Included parts like button pad or screws/clips can reduce extra buys and assembly issues.
• Quality factor: Closure seam strength helps avoid gaps that may demand quick rework.
• Service/time factor: Transfer time requires care to seat internals without damage.
• Service/time factor: Reassembly care helps prevent pinched button pad or misalignment rework.
• Service/time factor: Professional help adds cost but can lower uncertainty and damage risk.
