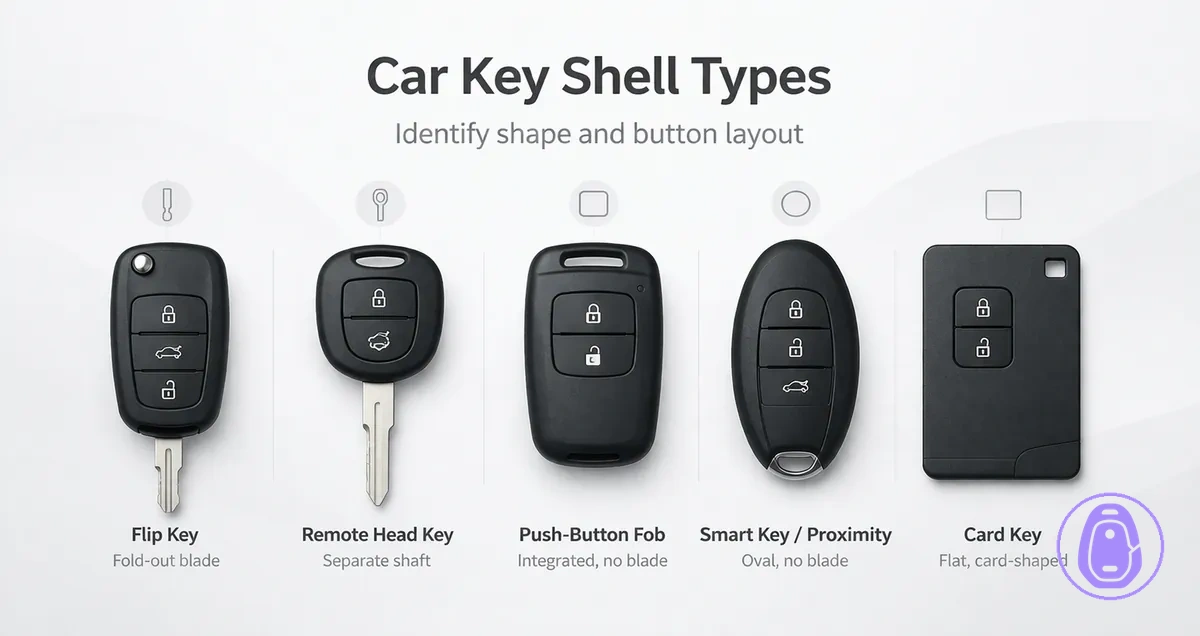

Car key shell types and form factors

A car key shell type or form factor refers to the external housing design of a car key shell or key fob shell, including its overall shape, button openings, blade area, and closure points. This page covers identification using visible external cues to narrow replacement options for the housing. Shell type provides a starting point by grouping similar designs, but type narrows options without confirming fit due to internal variations like clip positions or pad alignment.

The main observable splits in car key shell designs include flip key versus non-flip mechanisms, distinct housing shapes from slim remote heads to rounded fobs, button layout clusters by count and spacing, and closure styles such as clips or screws along the seam. Flip keys show a pivot and blade storage area, while non-flip housings emphasize a fixed outline and keyring attachment. These cues help identify the broad form factor family quickly; shell type ≠ electronics/programming.

Shell type identification relies on safe, non-destructive visual checks of external features, avoiding any need to open the housing. Use these cues as a first filter before checking internal alignment like button pad contact or closure flushness. The next section defines what counts as a car key shell type and what falls outside that scope.

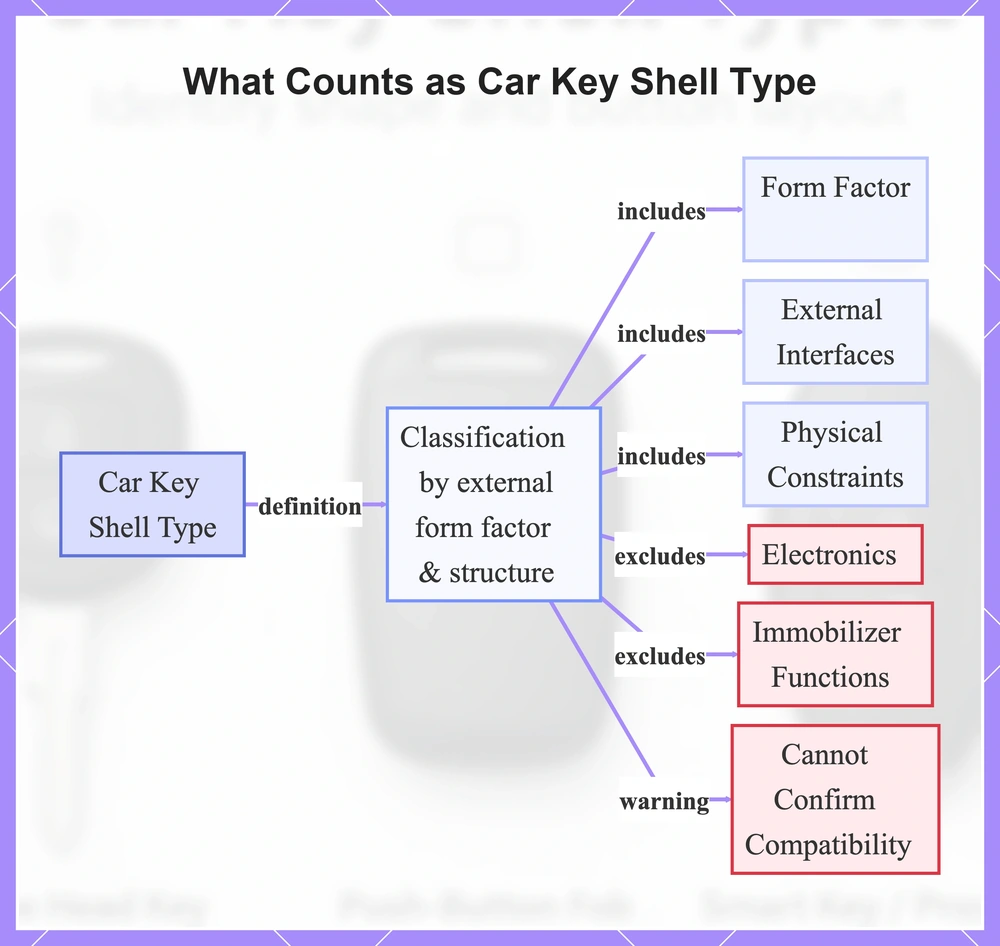

What counts as a car key shell type and what does not

A car key shell type is a housing-level classification that groups shells by external form factor and physical structure. It centers on the outer casing that protects internals, using visible traits like shape over hidden parts.

Shell type narrows housing families through form factor, external interfaces such as button openings and blade area, and physical constraints like dimensions. It cannot confirm compatibility amid internal variations that impact assembly. Shells that look similar can mismatch due to revision changes or fit points like clips and posts.

Included in shell type:

• Form factor such as flip or non-flip housing shape
• External interfaces including button openings and blade area
• Physical constraints like seam patterns and closure methods
• Overall silhouette and thickness profile
• Button cluster layout and spacing

Excluded from shell type:

• Electronics such as circuit boards or chips
• Immobilizer or transponder functions
• Programming requirements

This flowchart defines car key shell type by its external classification criteria, what features it includes and excludes, and its key limitation on compatibility.

The shell housing boundary: identifying the outer case without confusing it with electronics

The shell housing boundary separates the outer case surfaces from internal electronics when identifying car key shell type. Check visible housing features like the button interface area and blade area fit points, as they define the external form factor. Electronics elements do not label shell type, though they can influence fit in some cases. Do not assume external matches alone confirm compatibility without internal checks.

• Circuit board shape or mounting points, which vary independently of housing geometry.
• Battery compartment size or contact positioning, often unrelated to outer case dimensions.
• Transponder chip or wiring layout, excluded from shell type classification.

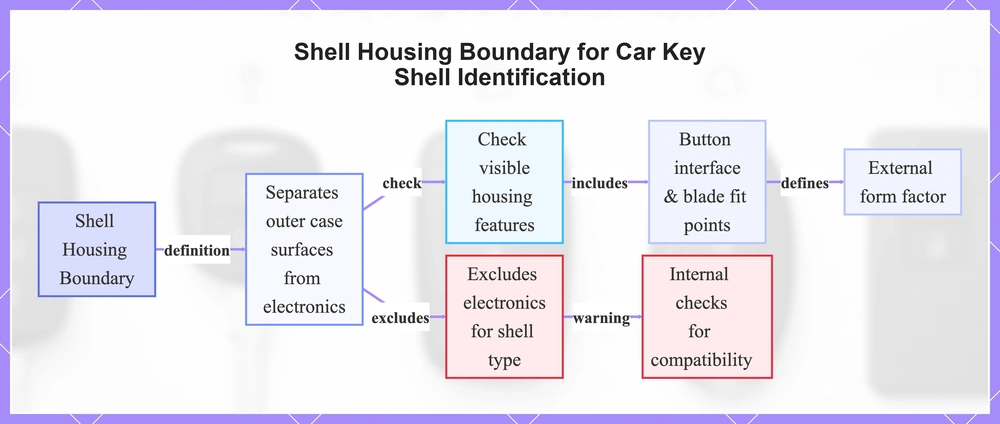

This flowchart defines the shell housing boundary, its key visible features for identification, electronics exclusions, and required compatibility checks.

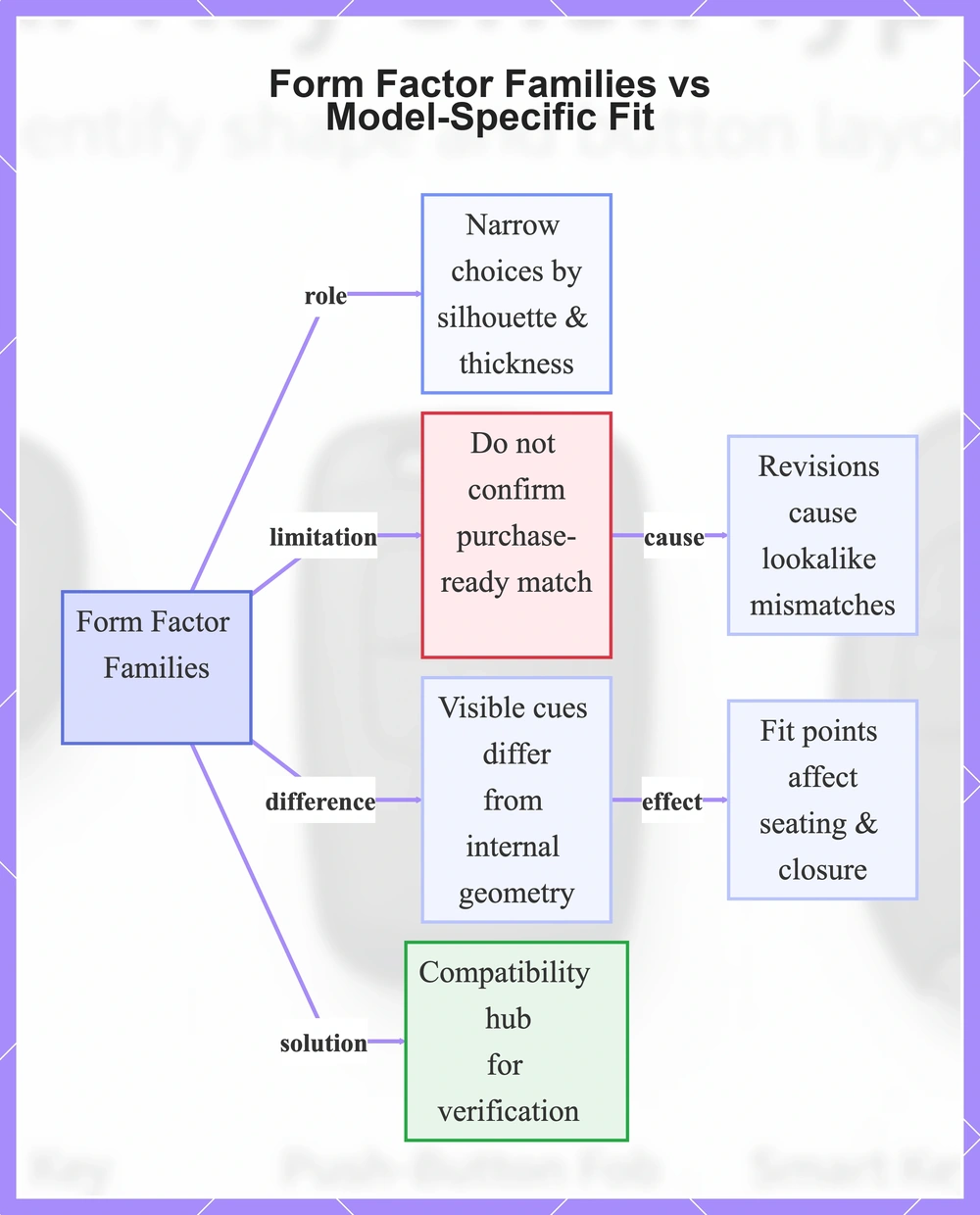

Form factor families versus model-specific fit: why “type” is only the first filter

Form factor families narrow car key shell replacement choices by grouping housings with shared visible cues like silhouette and thickness, but they do not confirm a purchase-ready match. Shell type identifies a broad housing family to reduce options, yet fit confirmation requires checking beyond external appearance. Revisions within the same form factor family can often lead to mismatches even among lookalikes.

Visible family cues such as overall shape differ from fit-critical internal geometry like clips, screw posts, and pad alignment. These fit points affect whether internals seat correctly and the shell closes flush. For detailed fit verification, see the Compatibility hub.

This flowchart shows why form factor families narrow car key shell replacement options as a first filter but require further checks for internal fit confirmation.

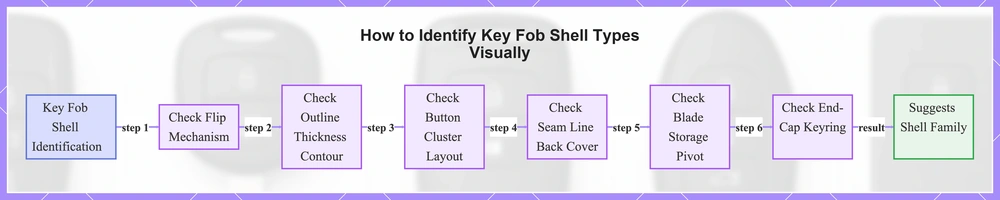

Key fob shell identification cues you can check quickly

Spot your key fob shell with quick external checks—no tools or disassembly needed to narrow choices. These identification cues highlight visible traits like fold mechanism and outline that point to a shell family. Use this ordered list, starting from the most obvious cues.

1. Check if the shell has a flip mechanism with the blade folding into the housing for a flip/non-flip distinction.
2. Look at the overall outline, thickness, and contour to spot broad silhouette families.
3. Note the button cluster shape, spacing, and window openings for layout clues.
4. Look at the seam line and back cover for closure hints like clips or screws.
5. Check the blade storage area and pivot visibility to narrow the fold type.
6. Examine end-cap geometry and keyring attachment for extra contour details.

These cues suggest a shell family, but follow up with fit checks; if in doubt, confirm compatibility next.

This flowchart shows the ordered external visual checks to quickly narrow down key fob shell families.

Flip mechanism and blade storage as the fastest split

Check the flip mechanism and blade storage to spot the difference between flip key and non-flip car key shells. Look for visible behavior around the pivot and release button: flip key shells let the blade fold into the housing, while non-flip ones keep the blade external or separate. A clear pivot and release button point to a flip key family. When in doubt, treat as family-level only.

• Pivot area: joint that lets the blade fold flush into the shell housing.
• Release button near the blade base triggers spring-assisted deployment and retraction.
• Blade storage integration keeps the folded blade secure inside the shell contour without sticking out.

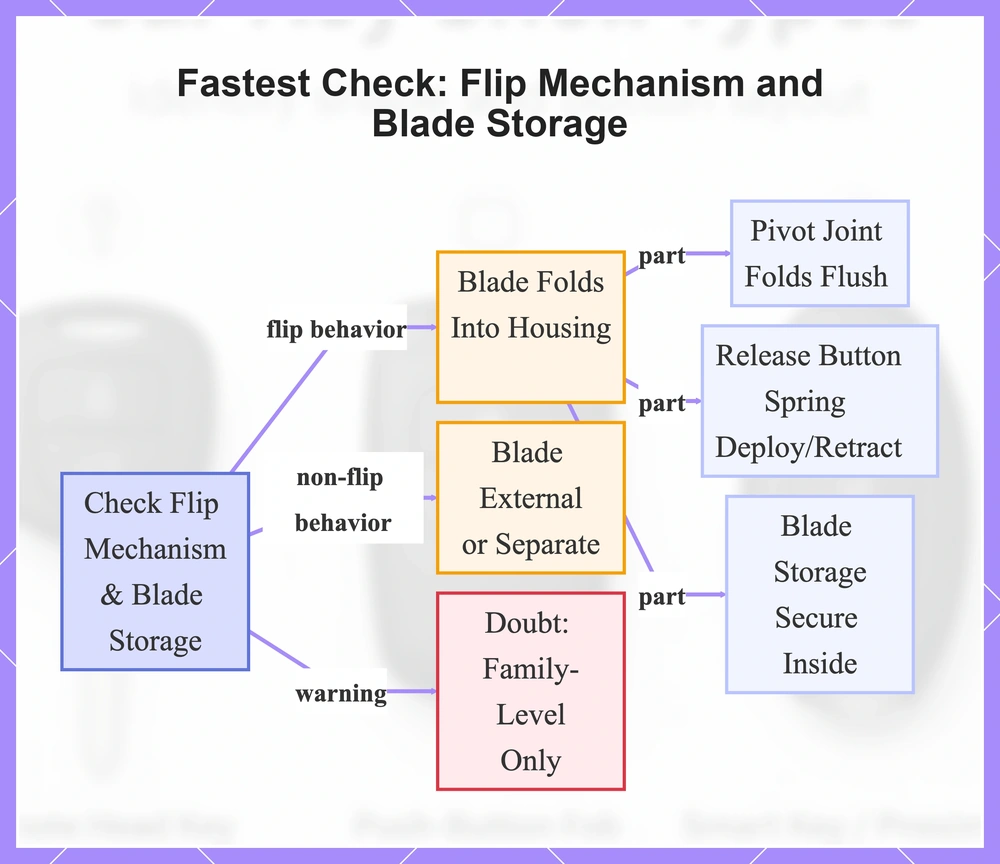

This flowchart shows how to distinguish flip key shells from non-flip ones by checking the flip mechanism and blade storage features.

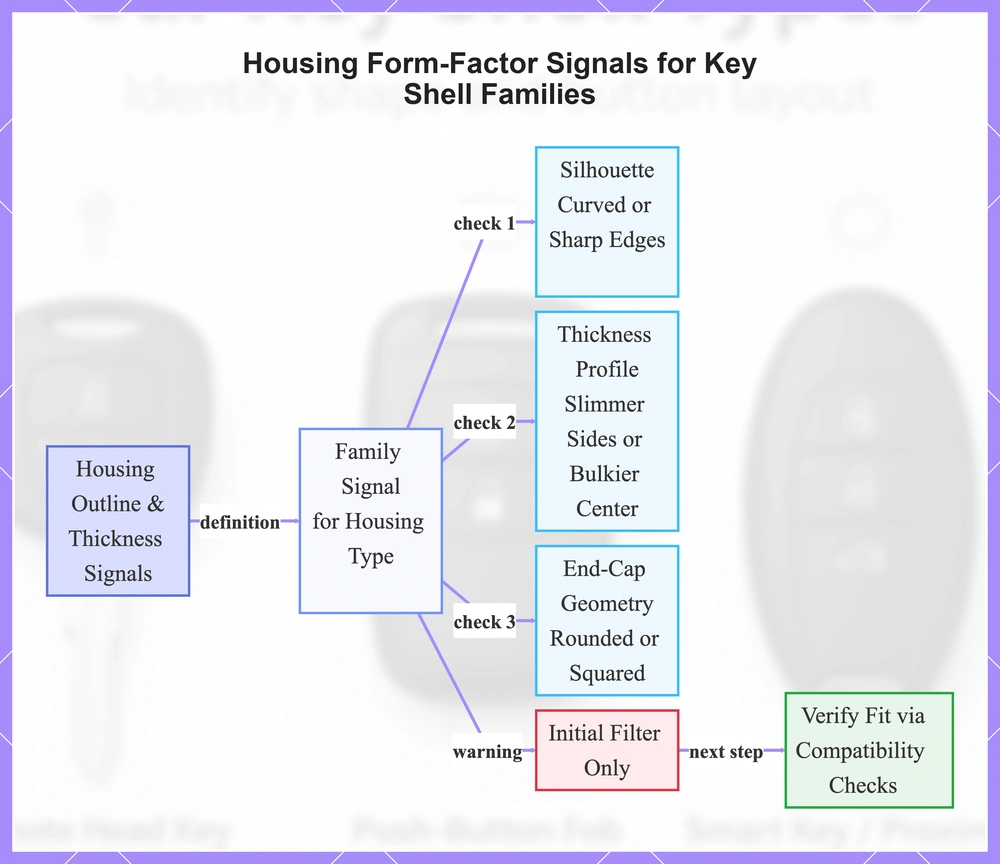

Overall housing outline and thickness as a form-factor signal

When examining a car key shell, the overall outline stands out first, showing whether the housing follows a more elongated or compact shape. The silhouette reveals broad contours, such as gently curved edges versus sharper angles, while the thickness profile appears slimmer along the sides or bulkier toward the center. The end-cap geometry around the keyring attachment adds further visual distinction, often rounded or squared. These elements together act as a family signal for the housing type.

These attributes provide signals that suggest a car key shell housing family rather than confirming an exact match. Similar outlines can appear across variants where internal fit points differ, making this an initial filter only. Verify fit later through compatibility checks to account for those variations.

• Silhouette: compare broad rounded versus squared outlines to narrow housing families
• Thickness profile: note slimmer sides versus thicker builds as a family cue
• End-cap geometry: observe keyring attachment shapes for additional family distinction

This flowchart details the outline and thickness visual signals that indicate car key shell housing families as an initial filter, with verification steps.

Button count and cluster shape as a secondary identifier

Button count and cluster footprint act as a secondary identifier to refine a car key shell's housing family after primary cues like flip mechanism or outline are matched. While button count provides a quick filter, layout and spacing within the cluster help determine alignment with the button pad, as differences in footprint can affect how the pad sits under window openings. Cluster shape often influences housing window precision and pad alignment, where mismatched spacing may lead to poor button responsiveness. Count alone is insufficient, as similar counts can vary significantly in layout.

• Button count narrows family options by matching the number of buttons visible on the housing surface.
• Cluster spacing refines fit by aligning button positions with underlying pad contacts, where uneven spacing often signals a variant.
• Cluster footprint differentiates families through overall button group dimensions relative to housing edges.
• Window openings and layout can help pad alignment by matching cutouts to button shapes, reducing risks of press failures.

Back cover style, seam pattern, and closure method as supporting cues

The back cover's style, seam lines, and closure method act as supporting cues for identifying car key shells after the main form factor split—like flip versus non-flip housings. Back cover elements such as seam line placement and closure with clips or screws can point to housing family alignment. Battery door cues, if present, add confirmation without overriding primary identifiers. Do not force closure if seams mismatch; these are just supporting cues that may signal a different variant.

• Symmetric screw positions along the seam line suggest consistent closure.
• Clip points near the seam geometry help ensure gap-free attachment.
• Battery door shape or location often matches common patterns.
• Seam geometry at back cover edges supports family fit.

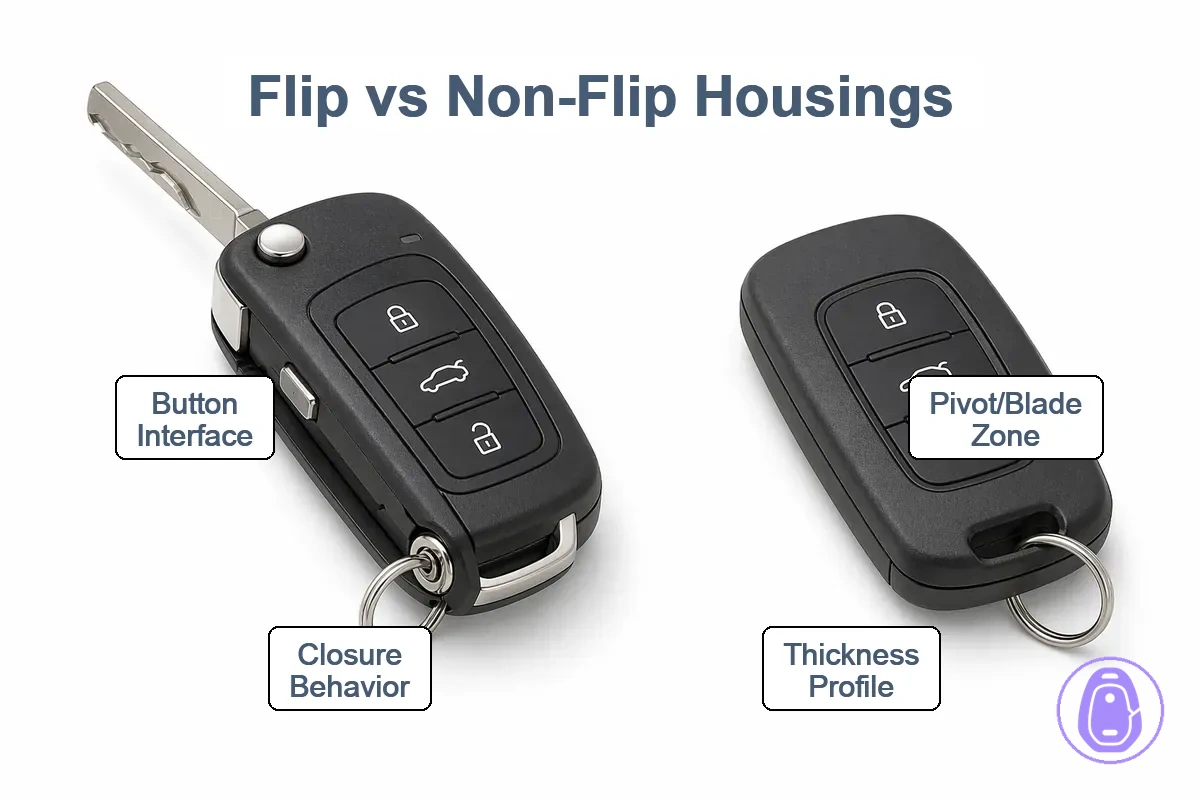

Flip style and non-flip housings as the main form-factor split

Flip housing and non-flip housing represent the two primary form-factor groups for car key shells, split by whether the blade folds into the housing. Flip housings use a pivot and release mechanism for blade storage, while non-flip housings keep the blade external or separate. This split matters for identification because it quickly narrows replacement options based on visible blade behavior and housing contour. The comparison remains conceptual, not fit proof.

To compare these groups, examine cues in the pivot/blade zone, thickness, closure behavior, and button interface. Matching groups share family-level traits like outline and seam position, but differences often appear in blade integration and overall proportions. Typically, flip housings show a dedicated pivot area, while non-flip fob-style housings emphasize a uniform slab shape. Fit still depends on specific housing geometry.

Flip housing cue	Non-flip housing cue
Pivot and blade zone with release button and fold channel	No pivot; blade external or via separate attachment
Thicker profile to accommodate folded blade	Slimmer, uniform thickness without blade storage
Closure behavior around pivot seam with clips or screws	Simpler back cover seam, often battery door focused
Button interface shifted to avoid blade area	Central button cluster with full-width window
Keyring near pivot end	Keyring loop at fob end or side

Blade variations within these groups require deeper checks, as covered in the Blade and hinge matching guide.

Flip (switchblade) shell characteristics that define the housing family

Flip shells feature key external traits in the pivot area shape, release button placement, and blade channel design that indicate their housing family. The pivot area typically shows a reinforced circular or oval mounting point on the housing side. The release button appears near the top edge for thumb access, and the blade channel forms a narrow slot aligned with the pivot for folding the blade inward. These observable cues signal membership in the flip shell housing family only.

Picture a shell that visually matches these traits but differs in pivot tolerances or channel depth from production revisions. Lookalikes like this can confuse recognition since external matches often conceal internal variations. Verify fit separately from these family indicators.

• Pivot area shape: Sturdy rounded mounting that supports blade rotation, typically with reinforcement ridges.
• Release button placement: Easy thumb access position, often slightly recessed against accidental activation.
• Blade channel cues: Narrow slot with smooth edges for guiding blade fold into secure alignment.

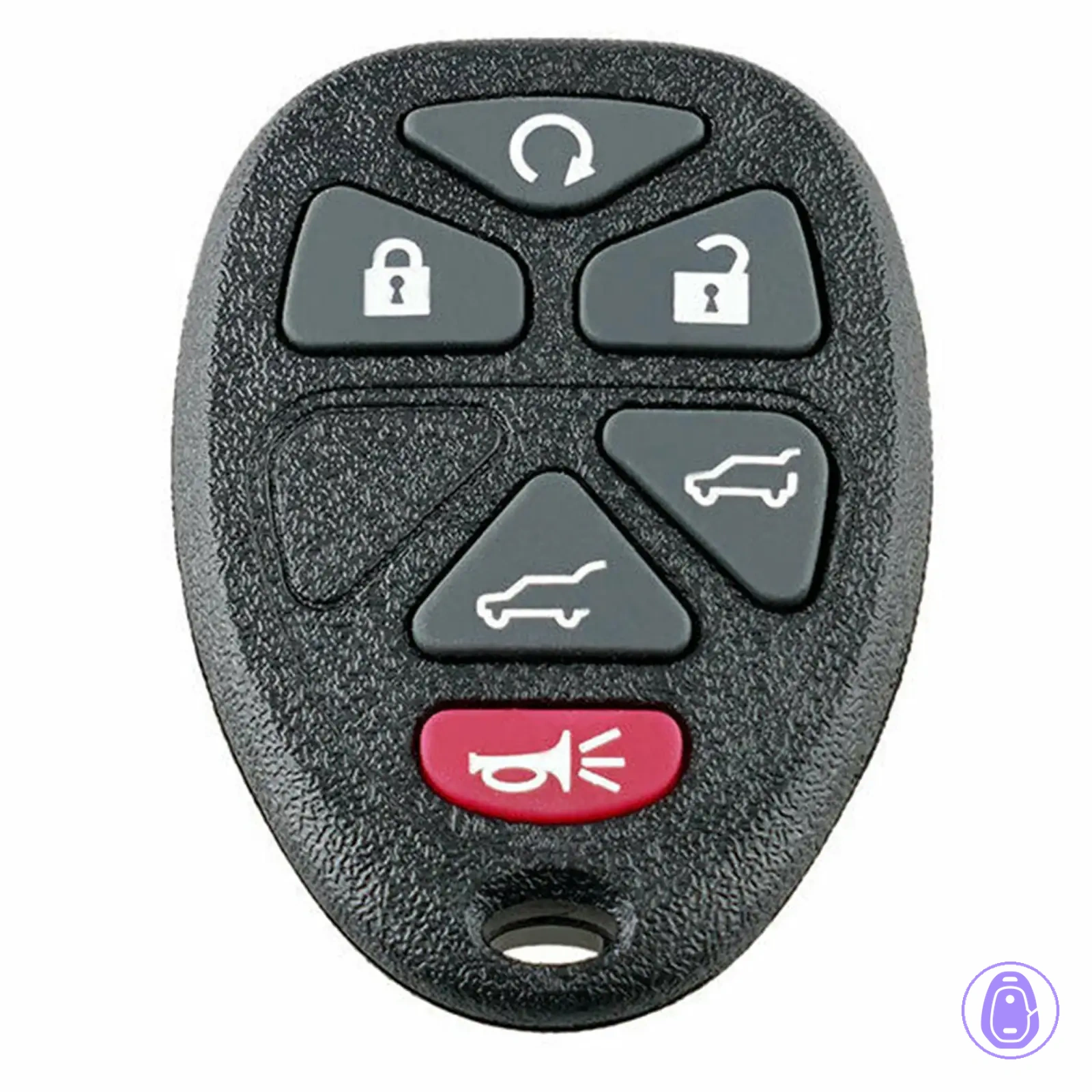

Non-flip remote and fob shell characteristics that define the housing family

Non-flip remote and fob shells rely on traits like body silhouette, button window design, back cover style, and keyring attachment to define their housing family. Silhouette often mixes thickness and contour to set slab remotes apart—these usually have a flat rectangular shape—from rounded fobs with smoother edges. Button window design uses layout and spacing to match internal pad positioning. Back cover style exposes seam and closure details, and keyring attachment offers another recognition cue. These act as family cues, then verify fit.

• Silhouette shows slab flatness versus rounded contours.
• Button window aligns layout and spacing for pad contact.
• Back cover reveals seam lines and closure methods.
• Keyring attachment marks the profile end.

Lookalike flip and non-flip shells: when the form factor matches but the shell still does not

Lookalike flip and non-flip shells often match in external form factor and overall shape, yet internal mismatch cues can prevent a proper fit during replacement. A common mistake is relying solely on visible similarities like outline and button layout, overlooking how revisions or variants alter hidden features. Key mismatch cues include screw post locations, clip geometry, and button pad alignment, which can produce outcomes like gaps, closure issues, or rattle. Criteria-based checks on these elements help identify risks before proceeding; for deeper verification steps, see the Compatibility hub.

• Screw posts in offset positions that may fail to line up with internals.
• Clip geometry variations that can prevent secure snap-fit closure.
• Button pad alignment mismatches that can disrupt contact and responsiveness.
• Tolerance differences that can cause loose assembly or binding friction.
• Internal rib or post geometry shifts that can lead to gaps or rattle.

Common car key shell housing style families you will see across brands

Car key shell housing style families group similar external shapes and interfaces to aid recognition.

Common ones you may see include remote-head, separate fob plus mechanical key, and smart key or proximity fob designs. These tie to shell silhouette and interfaces like button or blade areas.

• Remote-head key shells with an integrated blade and a thicker head section have compact housing where the blade emerges from a widened head. Button interfaces sit above the thicker profile, marked by integrated blade and end-cap geometry. Keyring attachments often sit near the head.
• Separate fob plus mechanical key housings have standalone fob bodies without integrated blade channels. Attachment points or loops link the fob to a separate mechanical key, visible in casing proportions. Interfaces center on keyring or clip areas rather than blade storage.
• Smart key and proximity-style fob housings typically show symmetrical shapes, evenly placed buttons, and minimal blade zones. Button placement uses central clusters, with back covers for battery access. Clean silhouettes favor proximity fobs over mechanical designs.

These are recognition families, not fit confirmation.

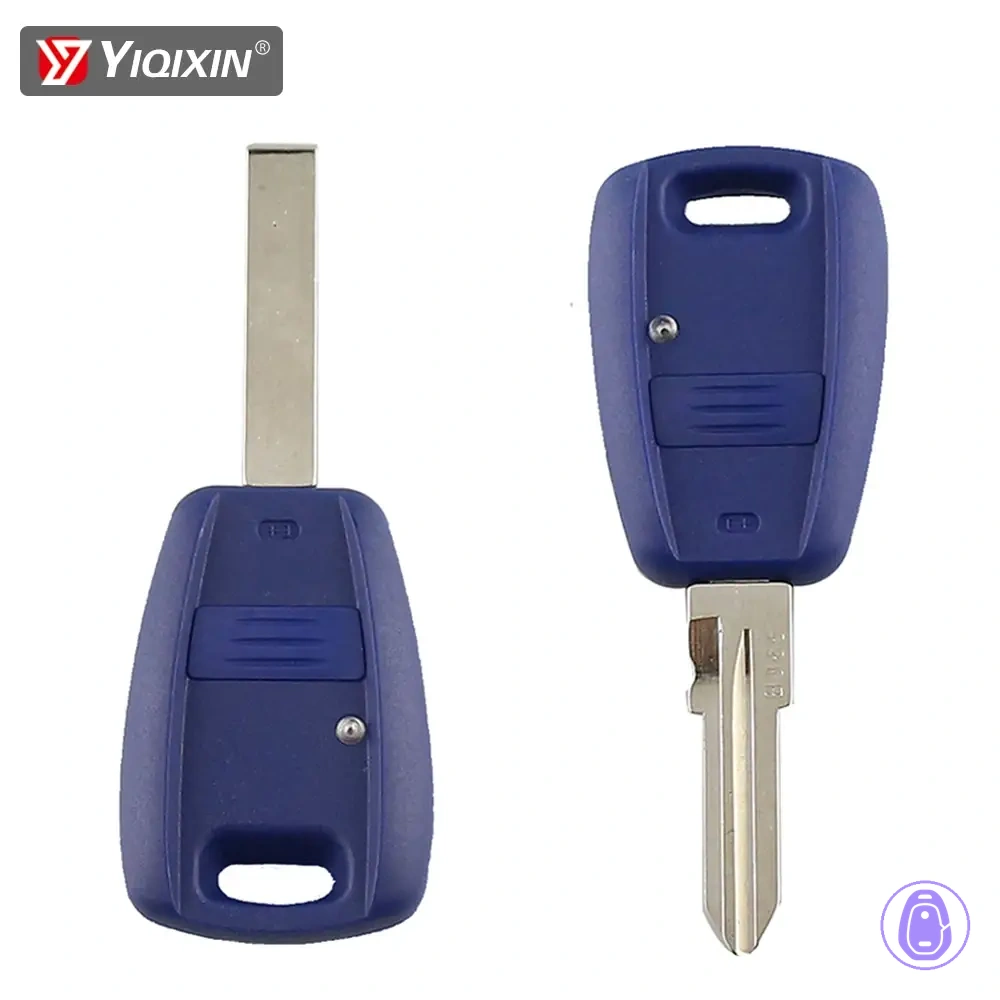

Remote-head key shells with an integrated blade and a thicker head section

Remote-head key shells have an integrated blade usually fixed right in the housing, plus a thicker head section for electronics and blade base—unlike slimmer pure fob designs.

They create a bulkier profile up front, with button interface placement sitting over the embedded blade area and no folding action to set them apart.

People sometimes think any integrated blade means a flip key, but integrated blade ≠ flip—remote-head keys usually skip the pivot and spring release found in folding types. The blade sits fixed in that thicker head housing, which affects overall fit. For deeper checks on these areas, see the Blade and hinge matching guide.

• Blade embedding skips channel or pivot slot, fitting straight into head housing.
• Thicker head section holds electronics and blade base, often giving a rectangular or elongated shape.
• Button interface placement shifts to the thicker head end, usually lining up over the internal board instead of a slim fob body.

Separate fob plus mechanical key housings and how the shell form factor shows it

A separate fob setup pairs a dedicated car key shell housing for the electronic remote with a distinct mechanical key.

Form-factor signals usually include no blade channel in the fob body, visible attachment points for the mechanical key, and casing proportions that emphasize a compact fob shape distinct from the key itself—unlike remote-head keys that integrate the blade directly into a thicker head section. These cues indicate a split setup where the car key shell houses only the fob electronics and buttons.

• No blade channel along the edge of the fob body, leaving a smooth contour without a slot or groove for key storage.
• Attachment points such as keyring loops or clips positioned to hold a separate mechanical key alongside the fob housing.
• Casing proportions with a slim fob form lacking extended thickness for blade integration.
• Keyring or lanyard integration near the base to pair the fob shell with an external mechanical key.

Smart key and proximity-style fob housings and the external cues they share

Smart key and proximity fob housings share typical external cues including symmetry in their overall shape, common button placement patterns, and minimal blade-zone features.

Symmetry often shows up as balanced, rounded or rectangular outlines without pronounced asymmetries from blade storage. Button placement typically uses clustered patterns. Appearance can vary.

Similar-looking smart keys and proximity fobs can still differ in back cover design and internal posts, creating fit risk despite shared external cues. These variations may affect closure alignment or component seating. External similarities do not ensure interchangeability.

• Symmetry around the housing center, contributing to a compact, uniform profile.
• Button placement in tight, evenly spaced groups aligned with underlying pads.
• Minimal blade-zone cues, such as subtle slots or smooth surfaces without visible hinges.

Button-count types as a quick filter within the same housing family

Button count acts as a quick filter to narrow car key shell options after identifying the housing family. Button count interacts with cluster footprint, spacing, and pad contact to refine potential matches rather than defining a complete type. Matching button count can still fail if spacing or pad contact differs.

Button count	Common cluster cue	Primary mismatch risk
2-button	Compact footprint with wider spacing between buttons.	Pad contact may fail if window alignment shifts, reducing responsiveness.
3-button	Balanced cluster footprint, often with center button offset.	Mismatch can occur when spacing varies, affecting pad alignment.
4-button	Larger footprint with tighter spacing or compression.	Footprint expansion can alter pad contact, potentially leading to inconsistent presses.

2-button shells and the typical layout constraints they imply

2-button car key shells often feature consistent spacing between buttons to aid pad alignment and press feel during identification. Icon window shape typically uses a compact rectangular or slightly rounded form that frames icons without excess border, aiding distinction within flip or non-flip housing families. Pad alignment sensitivity stems from precise positioning for the rubber membrane to reach the circuit board evenly, where slight variations often signal the shell family. Spacing matters for accurate recognition across compatible housings.

• Button spacing stays proportionally tight relative to the cluster footprint, promoting stable contact.
• Icon window maintains narrow uniformity to avoid overlap with shell edges or keyring areas.
• Pad alignment demands even pressure, with offsets indicating mismatches in similar 2-button shells.

3-button shells where layout variation is most common

3-button car key shells tend to show more layout variation than other counts because manufacturers adjust cluster footprint to fit different housing families and button pad interfaces. That variation often shows up as vertical layout versus clustered layout patterns, where spacing between buttons and center button positioning can differ significantly. These elements distinguish the shell type, as footprint mismatches may lead to pad alignment risk during replacement. Layout variation is common among these shells.

• Vertical layout stretches buttons in a line, increasing spacing and altering the overall footprint.
• Clustered layout groups buttons tightly, which can reduce spacing but raise pad alignment sensitivity if the window openings do not match.
• Center button positioning shifts the cluster footprint, often placing it off-axis in vertical layout or symmetrically in clustered layout.
• Spacing inconsistencies within the layout affect button travel and pad contact, highlighting footprint differences even among similar 3-button shells.

4-button shells where housing size or button compression changes the feel

4-button shells differ based on whether the housing grows to fit the buttons or the buttons compress into a smaller space. A grown housing increases the overall footprint and thickness to allow wider spacing between buttons, while compression packs the four-button cluster into a more compact housing footprint. This approach can alter the cluster layout and button dimensions. Compression raises alignment sensitivity.

Consider two 4-button shells with matching count but differing spacing: one from expanded housing footprint, the other from tight compression. Reduced spacing and thickness in compressed layouts may cause inconsistent button pad contact. Verify fit for button travel and cluster positioning mismatches.

• Generous spacing signals grown housings with larger footprint and thickness.
• Compression tightens button layout within reduced housing footprint.
• Alignment risk from compression involves spacing inconsistencies and button travel variation.

Form-factor details that change fit risk even when the shell type looks right

Even after identifying the correct car key shell family and form factor based on external cues, specific internal details can still raise fit risk during assembly. Appearance may stay similar while internal alignment points change between variants, such as subtle shifts in housing geometry or interface tolerances. These mismatches can prevent proper closure or component seating. Common signals to check include closure mechanisms, posts, and button pad interfaces.

Closure risks often involve seam alignment, clips, or screws that fail to meet evenly, which may lead to gaps or incomplete closure. Posts and related alignment points can vary in position or depth, potentially causing components not to close flush or introducing rattle during use. Button pad interfaces might differ in window positioning or travel depth, resulting in inconsistent presses or poor responsiveness. For criteria on verifying these fit signals, consult the Compatibility hub. Blade and hinge areas can also hide form-factor variant differences that affect overall fit; see Blade and hinge matching for details.

• Mismatched seam location along the closure edge may lead to visible gaps.
• Clip positions that do not align with internal components can prevent secure closure.
• Screw post spacing variations might cause uneven fastening or instability.
• Alignment posts not matching housing recesses may result in failure to close flush.
• Button pad interface offset from window openings can produce inconsistent presses.
• Button travel depth mismatch may lead to poor pad contact or rattle.
• Closure seam tolerance differences often contribute to loose fits over time.
• Post alignment inconsistencies can amplify button pad interface risks.

Clip versus screw closure and seam location as a housing generation signal

Closure method and seam location can signal different housing generations in car key shells, where clips or screws along with seam patterns indicate variations that may not cross-fit between generations. A shift from clip-based closure to screw-based or changes in seam location often reflect updates in housing design, affecting alignment points like posts and edges. Mismatches in these cues can lead to issues such as poor closure or gaps, as the geometry for clips, screws, and seam alignment evolves across generations. Do not force closure if these cues differ, as it risks damaging components.

• Clip-only seams without visible screw holes suggest an earlier housing generation focused on snap-fit retention.
• Screw positions near the seam that do not align with your original shell may signal a revised housing generation with added reinforcement.
• Seam location shifted toward the edge or center can indicate a different generation's clip or post layout, preventing flush closure.
• Hybrid clip-and-screw patterns mismatched in spacing often point to generation-specific alignment for posts and clips.
• Thicker or thinner seam lines paired with mismatched closure hardware may cause misalignment and incomplete flush seating.

Button pad style and button travel cues that affect alignment and responsiveness

Button pad style and button travel in a car key shell matter because they affect how evenly presses reach the internals through the housing. The button pad presses against the shell's window openings to make contact, and its design influences that contact quality. Poor matches can create alignment risk with varying button responsiveness.

Cues such as pad thickness relative to window depth and dome feel under pressure signal potential fit issues. Inconsistent travel points to pad-window mismatch or low precision in shell molding. Check these against the Quality checklist for criteria on overall build alignment.

• Pad thickness exceeding window depth may block full contact and reduce button travel consistency.
• Dome feel lacking uniform resistance can show uneven pad alignment with variable press responsiveness.
• Window alignment mismatches at pad edges might stop proper seating and risk button travel smoothness.
• Travel consistency differences across buttons often indicate spacing or contact problems affecting pad performance.

Blade and hinge area cues that indicate a different shell variant without doing full hinge matching here

Blade area and hinge or pivot cues provide minimal signals of a car key shell variant mismatch that can raise fit risk during replacement. Key differences often appear in pivot shape, blade channel opening, retention hardware position, and release geometry, where even small variations may prevent secure blade seating or smooth operation. These cues matter because they affect how internals align and hold without full matching, potentially leading to loose folding or blade interference if overlooked.

• Differing pivot shape can misalign the hinge motion, raising the risk of binding or incomplete folding in the blade area.
• Blade channel opening variations may cause poor blade fit, leading to wobble or ejection risks during use.
• Retention hardware position shifts, such as clip or pin offsets, often signal internal geometry changes that compromise blade security.
• Release geometry mismatches can alter the flip action, increasing chances of inconsistent deployment or heightened fit risk.

Deeper verification may be needed if these cues differ from your existing shell; see the Blade and hinge matching page for more targeted guidance.

Misleading signals that often cause wrong shell identification

Shortcuts like model year assumptions or cosmetic details in car key shell identification often cause mismatches. They overlook housing geometry and interfaces that determine fit. Lookalikes from similar revisions may share a visual family but differ in critical fit points such as clips or posts. Physical interfaces and housing geometry tend to give more reliable family signals than branding or trim variations.

• Misleading: Model year shortcuts ignore production revisions affecting clips and posts.
• Misleading: Cosmetic cues such as color or trim rarely affect housing geometry or button interfaces.
• Misleading: Branding details offer limited insight into blade area or closure methods.
• Misleading: Surface finish variations overlook seam patterns or pivot alignment.
• Usable: Housing geometry like outline and thickness signals form factor family.
• Usable: Button interfaces and spacing refine identification beyond count alone.
• Usable: Closure seam and clip positions indicate generation differences.
• Usable: Blade area and pivot cues confirm mechanism type.

Verify physical interfaces and housing geometry when unsure.

Vehicle model year and visual lookalikes as unreliable shortcuts

Relying on a car key shell's model year match or identical looks to your original often causes fit point mismatches. Manufacturers commonly roll out revisions in the same model year that tweak internal housing geometry while keeping the outside the same. Such shifts can hit key spots like posts, clips, and pad interfaces, so looks alone rarely predict a good fit. Treat model year and lookalike cues as hints, not guarantees.

Picture a replacement shell from the matching model year that seems identical upfront, yet hides a small production revision shifting clip spots or pad interfaces. That alone can block secure closure or crisp button response. Supplier tweaks add more housing tolerance quirks—always verify physical details.

• Model-year revisions repositioning posts or reshaping clips, often causing gaps or loose fits.
• Trims with quiet supplier shifts on pad interfaces, sparking button glitches even with matching shells.
• Factory variances in fit points such as seam lines, dooming lookalikes to poor closure.

Brand badges, color, and cosmetic trim as non-determining signals

Badges, colors, and trim are cosmetic differences that should not define car key shell type. They typically do not change fit points like clips, posts, or button pad alignment. Styling elements like these prioritize visual appeal over structural matching, so shells with similar cosmetics can still fail to align due to geometry variations. Identification reliability rests on housing interfaces rather than surface details, which often vary independently of functional constraints. Interfaces beat styling.

• Badge shape or emblem style typically adds visual distinction without altering clip positions or seam geometry.
• Color finishes or paint schemes are often applied post-molding and typically unrelated to internal post alignment.
• Trim patterns or edge detailing are often superficial changes that typically leave button pad interfaces unaffected.
• Surface texturing or gloss levels around the badge area typically do not impact blade slot or closure fit points.

What to do after you identify the shell type and form factor

After identifying the car key shell type and form factor, confirm fit next through a verification process. This sequence shifts from type narrowing to decision-making by tackling compatibility first to sidestep mismatch risks. It can cut the odds of picking a lookalike shell that won't work in assembly or daily use.

This order—confirm fit, check blade/hinge if relevant, evaluate quality, then plan replacement—helps avoid errors like buying a matching-looking but incompatible housing. Each step adds assurance before you buy or swap, as type alone won't ensure internals line up. Back to selection hub for more on quality and choices.

1. Confirm fit with outline, button layout, and closure cues to align housing and internals.
2. If your key has blade or pivot, check blade/hinge match for secure storage and function.
3. Evaluate quality via molding precision, closure integrity, and button feel to spot durability problems.
4. Move to replacement planning after fit and quality check out, readying internals transfer.

Move from type identification to fit confirmation with the compatibility hub

Fit confirmation is the key validation step after type identification. It reduces mismatch risk when picking a car key shell replacement. Check main fit dimensions at a high level: outline match for alignment, button layout and button pad spacing, and blade/hinge fit if your key has pivot or flip mechanisms. This step helps avoid gaps or looseness in housing support for internal components. The full method lives in the Compatibility hub.

• Outline match for overall shape and alignment
• Button layout and button pad for spacing and contact points
• Blade/hinge fit when applicable for pivot and blade area risks

After fit signals align, use the quality checklist to avoid low-precision housings

Low-precision housings can still cause gaps, rattles, or inconsistent button presses despite matching basic fit signals. Quality screening serves as the final check to spot build flaws before moving ahead. Use the Quality checklist for a clear evaluation of key criteria.

• Molding precision: look for clean alignment of housing halves; poor molding may cause gaps or misalignment on closure.
• Closure integrity: check seam flushness and clip or screw hold; weak closure can lead to rattles or separation over time.
• Button feel: test travel and responsiveness; uneven feel may mean poor pad contact and dead presses.
• Housing seam alignment: verify even seams without offsets; poor alignment may prevent full closure or cause looseness.
• Button travel consistency: ensure even pressure across buttons; uneven travel can yield spotty presses or early wear.

Use the checklist before buying.
