Car key shell blade and hinge compatibility checks for a correct-fitting flip shell

Flip key shells fit right when blade profile, seating geometry, blade mount and slot, and flip hinge and pivot all line up. Almost compatible shells fail from subtle geometry mismatches in these interfaces, leading to poor seating or lock-up. Tolerance stacking between blade type, hinge type, and shell turns small differences into bad fitment.

The four compatibility gates go beyond brand or model matching:

• Blade profile mismatches block proper blade fit.
• Seating geometry mismatches create gaps or incomplete seating.
• Blade mount mismatches hurt retention and stability.
• Hinge/pivot mismatches disrupt lock-up and smooth flip action.

This covers physical shell fit only, not electronics pairing, programming, or remote functions.

Blade type vs hinge type on a car key shell: what each one controls

Blade type is the configuration of the slot in a car key shell that matches the metal key's blade profile. It controls seating of the blade inside the shell housing, ensuring full insertion and alignment without gaps or wobble. A wrong blade type means the blade won't seat or align, compromising the assembly.

Hinge type is the assembly that handles the flip mechanism, lock-up action, and pivot hardware in switchblade or flip key shells. It manages blade deployment, folding motion, and retention at open or closed positions via pins or screws. Even with a correct blade type for seating, a mismatched hinge type can lead to stiff flipping, a loose pivot, or failure to lock-up. Blade type matching isn't the same as hinge type matching—a common mix-up where fit control differs from motion control, as in Car key shell types.

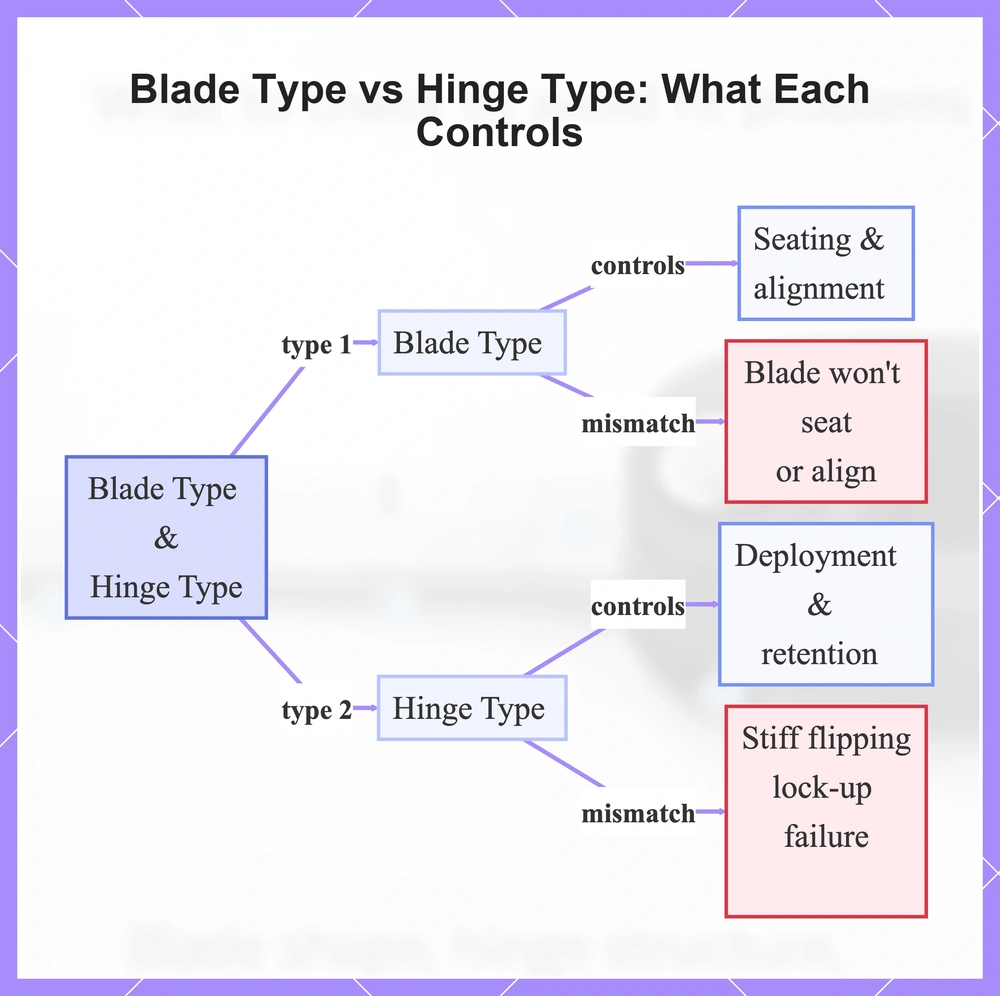

This flowchart compares blade type and hinge type in car key shells, detailing what each controls and the effects of mismatches.

Scope boundaries: what blade-and-hinge matching affects, and what causes fit problems outside this scope

Blade-and-hinge matching fixes mechanical fit problems at the interface—like seating and retention issues. Proper matching eliminates wobble, hinge lock-up, and pivot binding. Fit problems outside this scope often come from other shell components or electronics. Back to compatibility hub for broader checks.

In scope

• Seating: Blade sits flush without gaps.
• Wobble: No side-to-side play during use.
• Hinge lock-up: Hinge does not stick in position.
• Pivot binding: Smooth rotation without friction.

Out of scope

• Electronics programming.
• Button misalignment: Often from separate housing tolerances.

Perceived wobble often looks like a blade-and-hinge mismatch but usually comes from a loose shell component, like an internal retainer clip. Check shell integrity first before assuming interface issues. That pinpoints the real starting point.

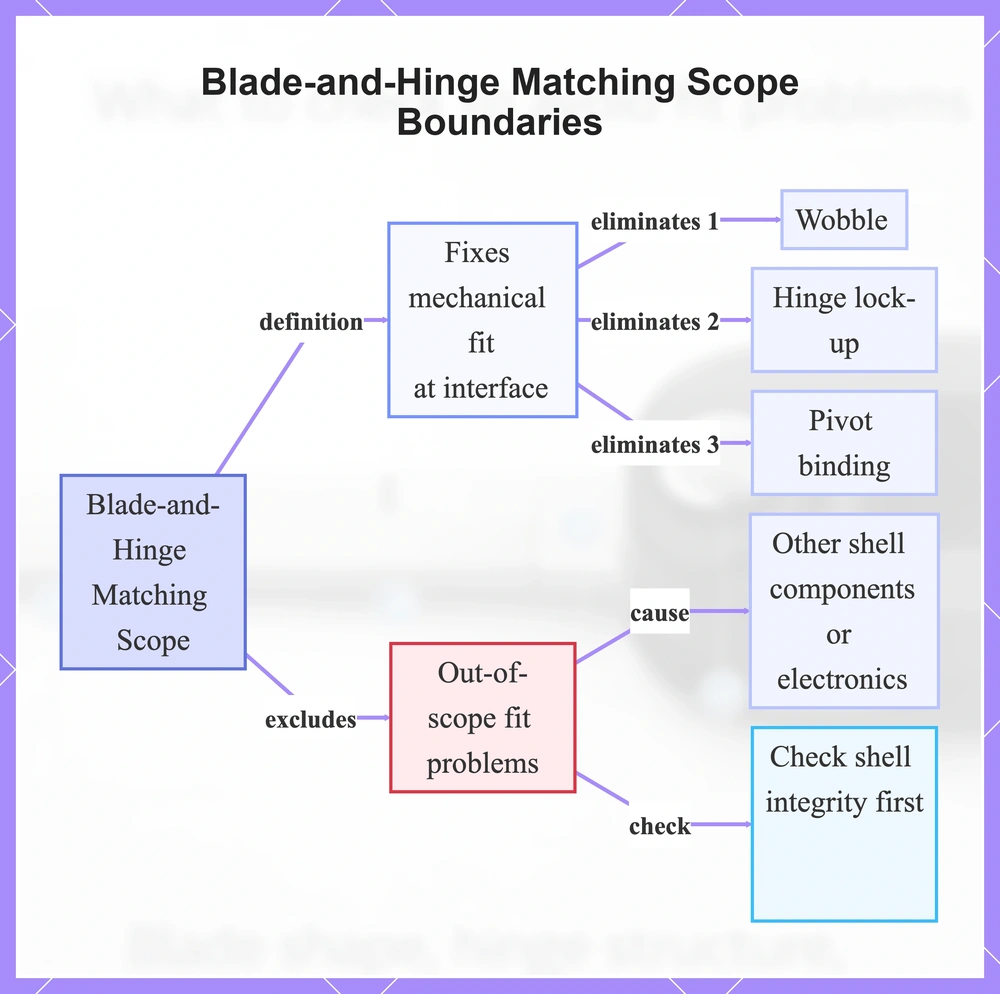

This flowchart shows what blade-and-hinge matching fixes and eliminates, what fit problems it excludes, their causes, and the first check for out-of-scope issues.

Identify your starting point: fixed key vs flip key, and where the blade interface actually sits

Check if your key is a fixed key or flip key to find the blade interface. Observe without tools or force, just note form factor and retention. Follow these steps.

1. Look at the overall form factor: fixed keys typically have a non-folding blade that stays exposed, while flip keys have a blade that folds into the case.
2. For a flip key, spot the hinge location and pivot where the blade connects to the case, often near the base.
3. Check for a removable blade by looking for retention features at the blade interface without attempting to remove it.
4. If the blade is removable, check the mount; if not, focus on profile and seating cues. Use the Fit check workflow now to check blade profile first.
5. If you can't view the blade mount directly, compare external visual signs like button layout or case shape to your vehicle model.

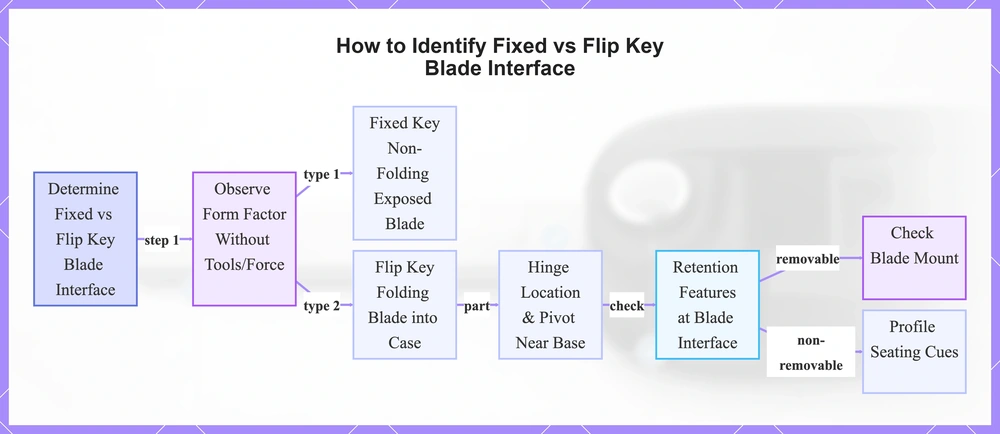

This flowchart shows the visual steps to distinguish fixed and flip keys, locate the blade interface, and check for removable blade features without tools or force.

Blade profile compatibility cues that decide whether your metal blade can be reused

Blade profile compatibility determines if your metal key blade seats correctly in a new shell before hinge or mount details. The profile matches when it aligns with the shell's groove and track—no gaps or force required.

Blade profile match differs from mount match. Profile mismatches block initial seating, while mount issues affect retention. The main cues cover profile family, groove/track alignment, and orientation constraints.

Two blades might look similar, but a mismatched groove cross-section causes rocking during insertion—even if lengths match. Orientation asymmetry flags incompatibility right away. Use the checklist to check these cues before the blade-geometry subchecks.

• Blade profile family: overall shape consistency
• Groove cross-section: matching curvature and depth
• Track alignment along the blade length
• Orientation markers or asymmetry: correct seating direction
• Blade position relative to shell groove center
• Initial seating: even contact without rocking

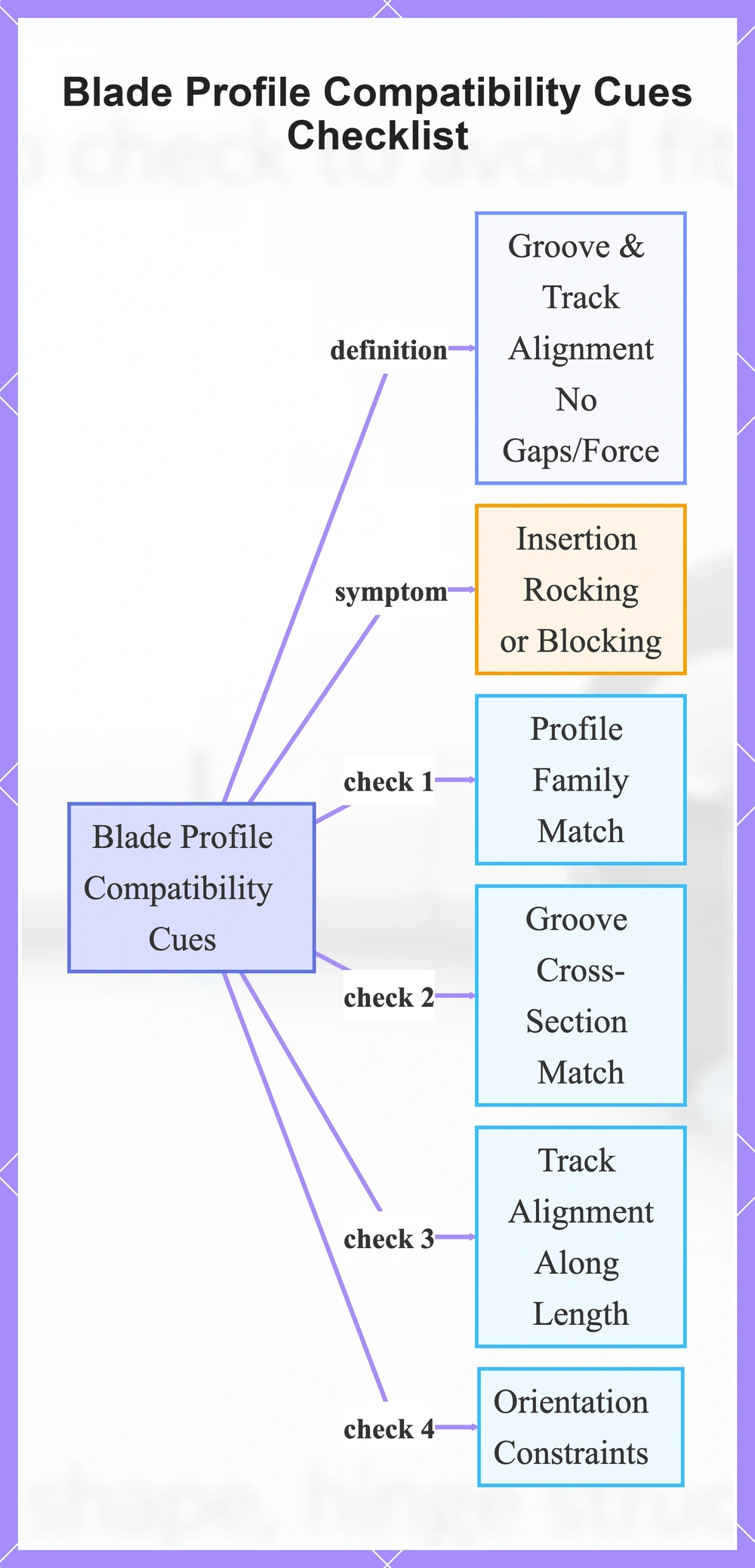

This chart shows the key cues, checks, and signs for verifying blade profile compatibility to ensure correct initial seating in a new shell.

Blade cross-section and groove pattern as non-negotiable constraints

Blade cross-section and groove pattern are non-negotiable constraints for physical fit. If the groove layout differs, it usually won’t seat correctly. Compare these cues:

• Thickness: mismatched thickness can keep the blade from entering the slot.
• Side groove: side grooves guide the blade's orientation; differences can cause side-to-side binding.
• Center track: center track alignment guides the blade lengthwise; offsets can block insertion.
• Chamfer: edge chamfers ease entry; absent or wrong chamfers can snag during insertion.
• Asymmetry: asymmetry requires specific orientation; reversal can prevent fit.

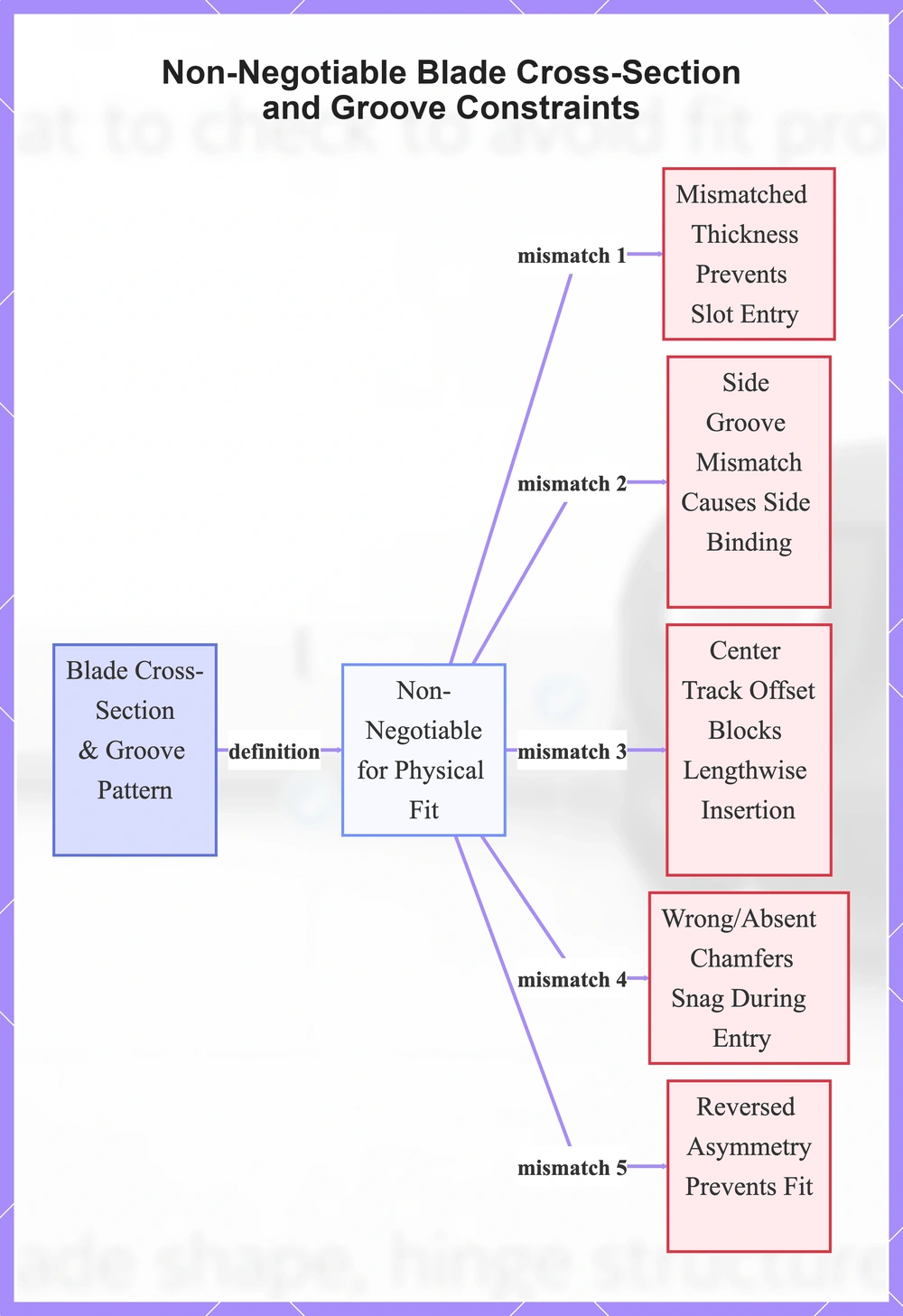

This flowchart details the blade cross-section and groove pattern as essential fit constraints, showing key mismatch risks that prevent correct seating.

Blade length, shoulder position, and stop geometry that control seating and alignment

Check blade length, shoulder position, and stop geometry for proper seating, even if the blade profile matches. The profile can match, but seating can fail from mismatched stops, shoulder, or blade length. These control blade centering and closure inside the shell.

• Blade length: compare overall length to the original; a mismatch can affect seating depth and centering.
• Shoulder position: compare location to the original; a difference can shift closure alignment off-center.
• Stop geometry: check face contact point; improper contact can prevent flush seating and stable closure.

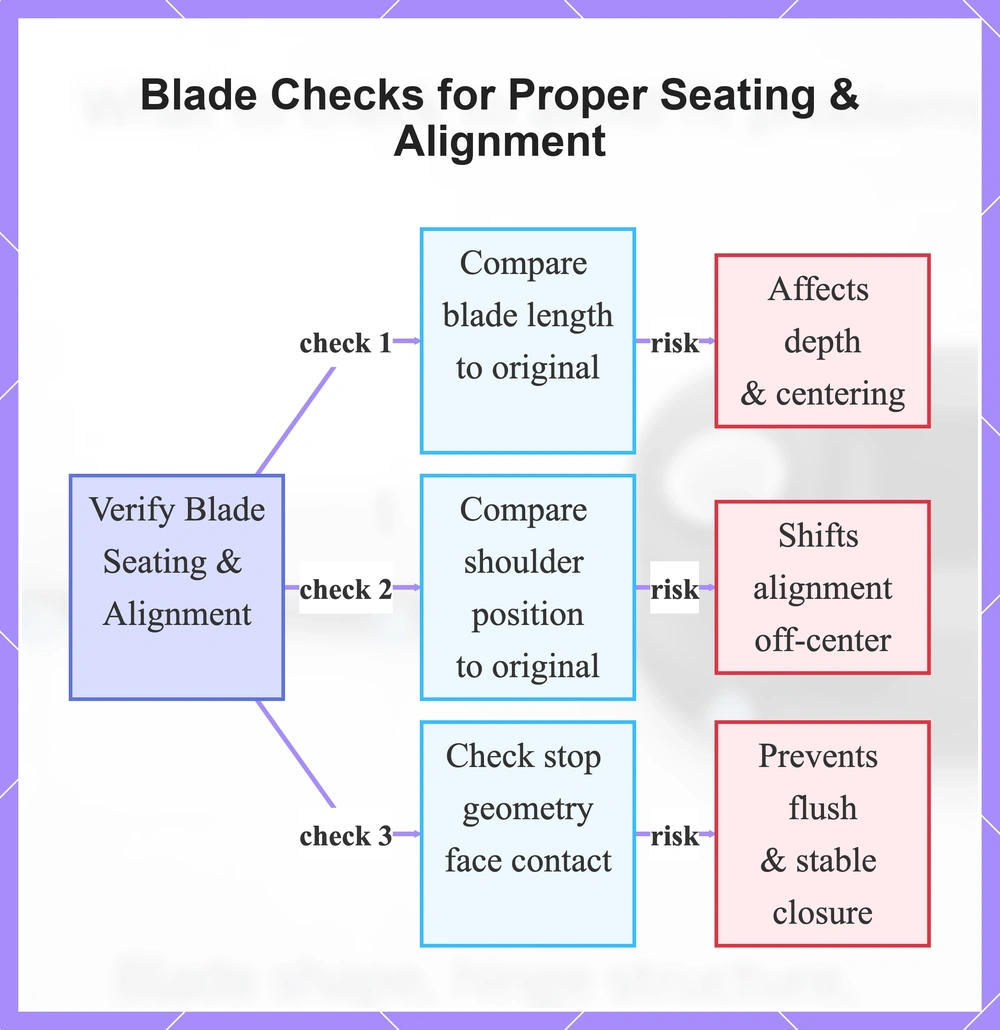

This flowchart shows the essential checks for blade length, shoulder position, and stop geometry to ensure proper seating and alignment, even if the profile matches.

Blade mounting differences inside the shell: retention style, indexing, and slot dimensions

The blade mount inside the car key shell secures the blade and sets its position. Mismatches here create the main fit gate, leading to wobble, binding, or non-closing shells. Retention holds the blade steady, indexing aligns it to prevent shifts, and slot dimensions like width and depth set the key differences.

A blade with the correct profile but mismatched indexing slides into the new shell's slot, but rotates under light pressure and causes wobble plus mis-centering. This common pattern—right blade profile but loose or tight mount—triggers binding or orientation problems that block smooth closing. Held in hand, the assembly feels loose, with the blade pivoting rather than locking firm.

• Visually compare retention style—like clip or barb positions—with your old shell's mount.
• Inspect indexing features such as notches or tabs for matching number and placement.
• Gently seat the blade to observe slot width clearance; check if it matches the original fit or shows excess play.
• Check slot depth by seeing if the blade seats to the same level as in the old shell.
• Seat the blade in both shells side by side to spot any mis-centering or offset.
• Press the blade lightly and shake to test for wobble; compare stability to the original.
• Fold to confirm orientation; see if the blade binds or shifts like in the old shell.

Retention and indexing features that prevent rotation, wobble, or mis-centering

Mount indexing features help lock the blade's orientation and stabilize its position. If the blade rotates, indexing is missing or mismatched.

• Flats help prevent rotation.
• Tabs help prevent rotation and wobble.
• Notches help prevent mis-centering and rotation.
• Keyed channel helps prevent rotation and mis-centering.
• Alignment shoulder helps prevent wobble and mis-centering.

Blade slot width and depth: where “almost fits” still fails

"Almost fits" hides slot width or depth issues. Even small deviations in clearance or taper cause binding, looseness, or wobble. Compare to the original shell to spot mismatches that show up as force or play.

Insertion requiring force signals a mismatch, not 'break-in'. Compare these sizing points:

• Slot width relative to blade: too narrow binds the edges, too wide causes wobble and clearance play.
• Slot depth to hilt stop: too shallow causes early binding, too deep leads to looseness.
• Internal taper profile: mismatch causes midway binding or uneven clearance.
• Clearance around blade shoulders: tight fit pinches and binds, excess allows rotational play.
• Slot base clearance: too little causes bottom binding, too much leads to hilt looseness.

Flip hinge compatibility: pivot hardware and hinge geometry that must match together

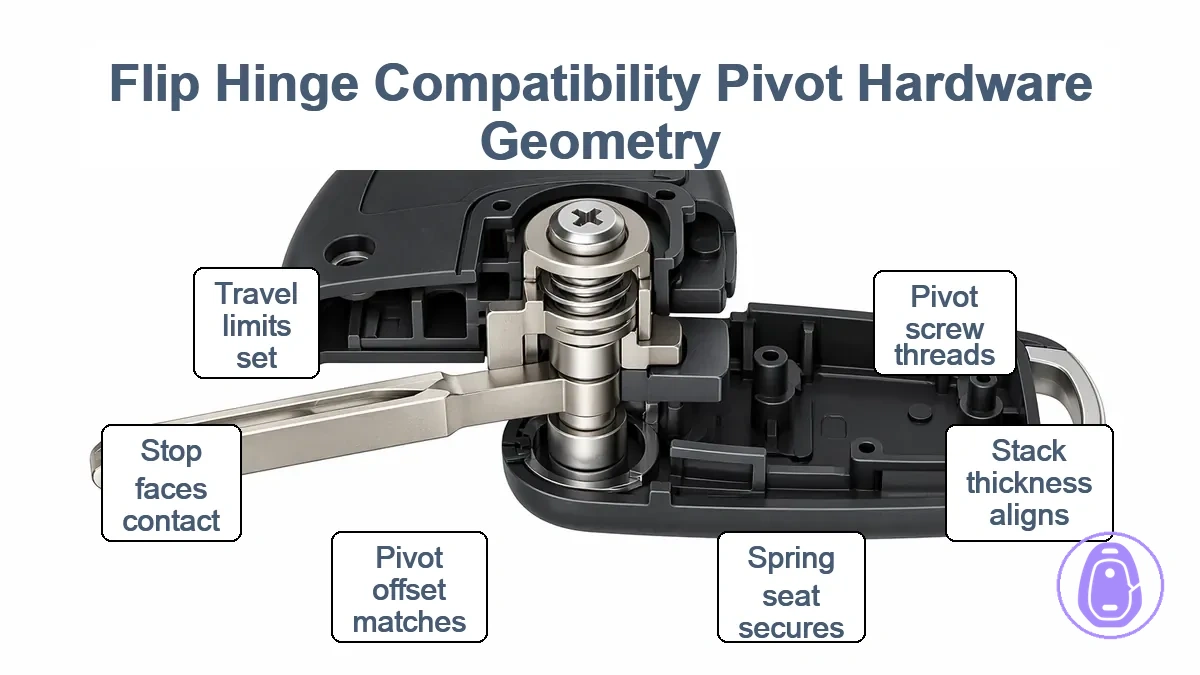

Pivot hardware includes parts like the pivot screw, pin, and stack thickness. These fit into the key shell and must seat securely without play or binding. Hinge geometry controls the motion path with features like pivot offset, stop faces, and travel limits. Match both areas: hardware mismatches block installation, while geometry mismatches disrupt flip and lock-up.

Picture a flip hinge where the blade opens with a smooth pivot but fails to achieve lock-up in the closed position. This "flips but won’t lock" scenario typically signals a hinge geometry mismatch, such as pivot offset that exceeds shell tolerances or stop faces that fail to align during closure.

Hardware issues show up differently:

• hardware fits but motion fails
• hardware doesn’t fit at all, like a mismatched stack thickness

Pivot Hardware Match

• Pivot screw and pin types must thread into shell mounts without stripping.
• Stack thickness must align with shell depth for flush seating.
• Spring seat must secure without wobble at the pivot point.

Hinge Geometry Match

• Pivot offset must match shell pivot point for balanced rotation.
• Stop faces must contact properly for closure.
• Travel limits must set flip range without over-rotation or binding.
• Lock-up geometry must allow blade to snap into place.

Pivot screw and pin variables: head type, diameter, thread, and stack thickness

Mismatches in head type, diameter, thread, or stack thickness can cause binding, stripping, or misalignment. Cross-threading may mimic incompatibility, so check fit without forcing.

• Head type: Prevents flush seating and causes misalignment.
• Drive type: Causes cam-out or head stripping.
• Shaft diameter: Causes binding or looseness in hinge holes.
• Thread pitch and length: Causes stripping or poor engagement.
• Pin type: Causes wobble or unstable rotation.
• Stack thickness: Causes interference or improper closure.

Spring position, pivot offset, and travel limits that control lock-up and smooth flipping

Make sure the replacement hinge's spring seat, pivot offset, stop faces, and travel range match the original mechanism. These geometry features support lock-up and smooth flipping. Misalignment often blocks proper closure or causes binding during flips—a blade that flips open but won’t close flush usually points to stop faces or pivot offset issues.

• Spring seat location: if off, it disrupts tension balance and causes incomplete lock-up or hesitant motion.
• Pivot offset: if mismatched, blade travel gets uneven, leading to binds or no full closure.
• Stop faces profile and position: if wrong, end positions lack security and the blade drifts from open or closed.
• Travel range: too much or too little hinders smooth flipping and lock-up in both spots.
• Spring seat depth relative to pivot: too shallow or deep changes force application, resulting in poor blade control or no lock-up.

A quick pre-order checklist to avoid blade-and-hinge mismatch

Use this quick pre-order check to verify gates against your original shell and avoid mismatch.

1. Verify that the key format matches your original shell.
2. Compare blade profile cues to your original shell.
3. Check seating geometry against your original shell.
4. Confirm mount retention and indexing match your original shell.
5. Verify slot sizing against your original shell.
6. Inspect pivot hardware against your original shell.
7. Examine hinge geometry and spring cues against your original shell.
8. Distinguish must-match gates like blade profile and hinge geometry from gates that can vary with tolerance like minor slot sizing.
9. Check the overall assembly preview for mismatch risks.
10. Test a dry fit if a pre-order sample is available.
11. If any gate cannot be confirmed, stop and verify with seller before purchase.

For post-assembly troubleshooting, look into Replacement hub options.

Mismatch symptoms and what they usually indicate in the blade mount or hinge pivot

Mismatch symptoms usually point to blade mount or hinge pivot issues, though keep conclusions conditional. Wobble, binding, or non-seating typically suggest misalignment in these areas rather than other components. The table maps key symptoms to likely causes. Back to compatibility hub

Symptom	Likely Cause	Explanation
Wobble during insertion	Blade mount indexing	Suggests poor tooth alignment or mount play, often from slight rotational offset.
Blade non-seating	Blade mount	Suggests depth mismatch or stop interference in the mount pocket.
Shell non-closing	Hinge pivot stop faces	Suggests pivot offset blocking full closure, common in stack height variance.
Hinge binding	Hinge pivot stack thickness	Typically from pivot diameter or thickness mismatch causing friction.
No lock-up	Pivot offset	Suggests lateral pivot misalignment preventing secure engagement.
Pivot misalignment	Hinge pivot	Often due to angular play in the pivot assembly.

Not every fit issue stems from blade/hinge mismatch—symptoms that persist after targeted checks may point to shell type incompatibility. Escalate to full shell verification if multiple areas fail reassembly.

Re-check the gates in order to confirm blade/hinge fit before advancing. Fit check workflow
