Matching Car key shell button layout and button pad for reliable presses

Matching the Car key shell button layout to the button pad helps ensure reliable press travel on the key fob. Without proper alignment, buttons can feel stiff or leave dead spots where presses fail.

• Looks the same: Button count, spacing, and orientation match visually through button openings.
• Acts the same: Internal contact points line up so the rubber membrane reaches switches.
• Scope match: Focus on button layout and pad seating, not full electronics.

Visual similarity alone can fail when internal contact points or button pad seating differ across Car key shell designs. Button openings may line up, but the rubber membrane dome might miss the contact point on switches.

Shell design determines the outcome, so alignment goes beyond appearance. Back to compatibility hub.

Button layout defines button openings, spacing, and orientation. The button pad is the rubber membrane with domes for press activation.

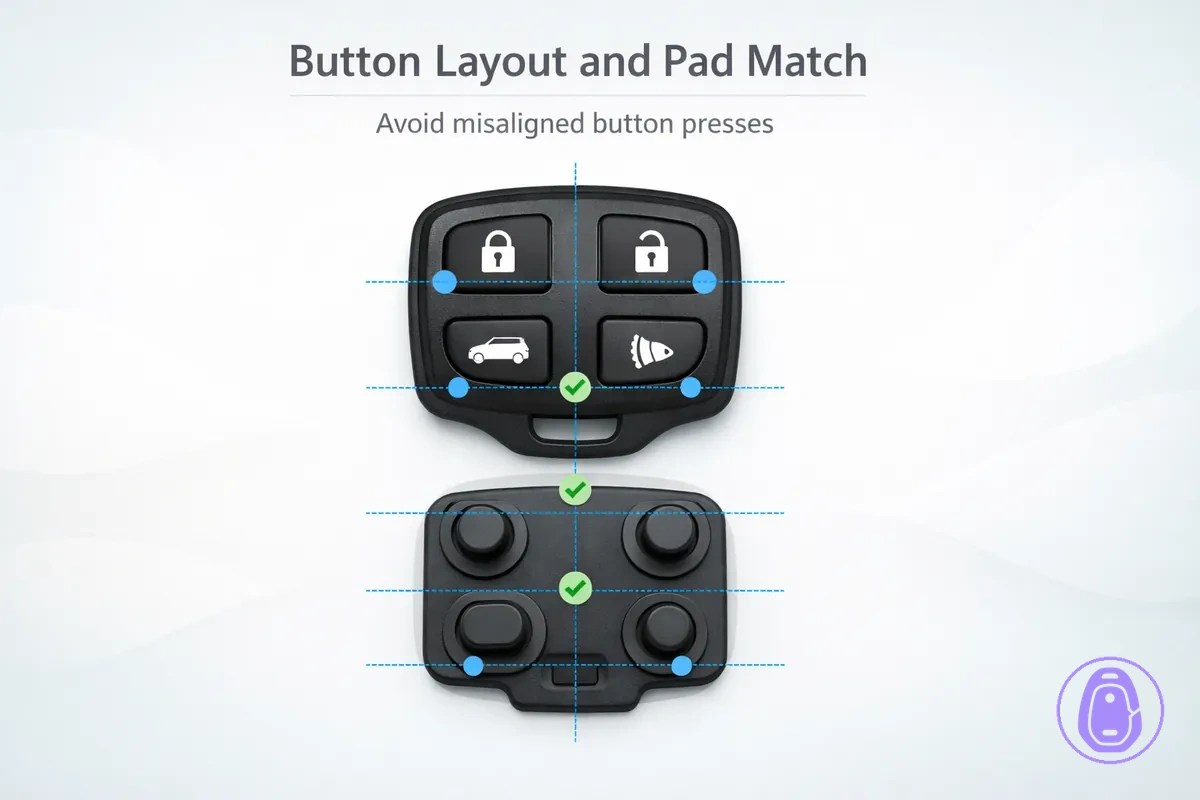

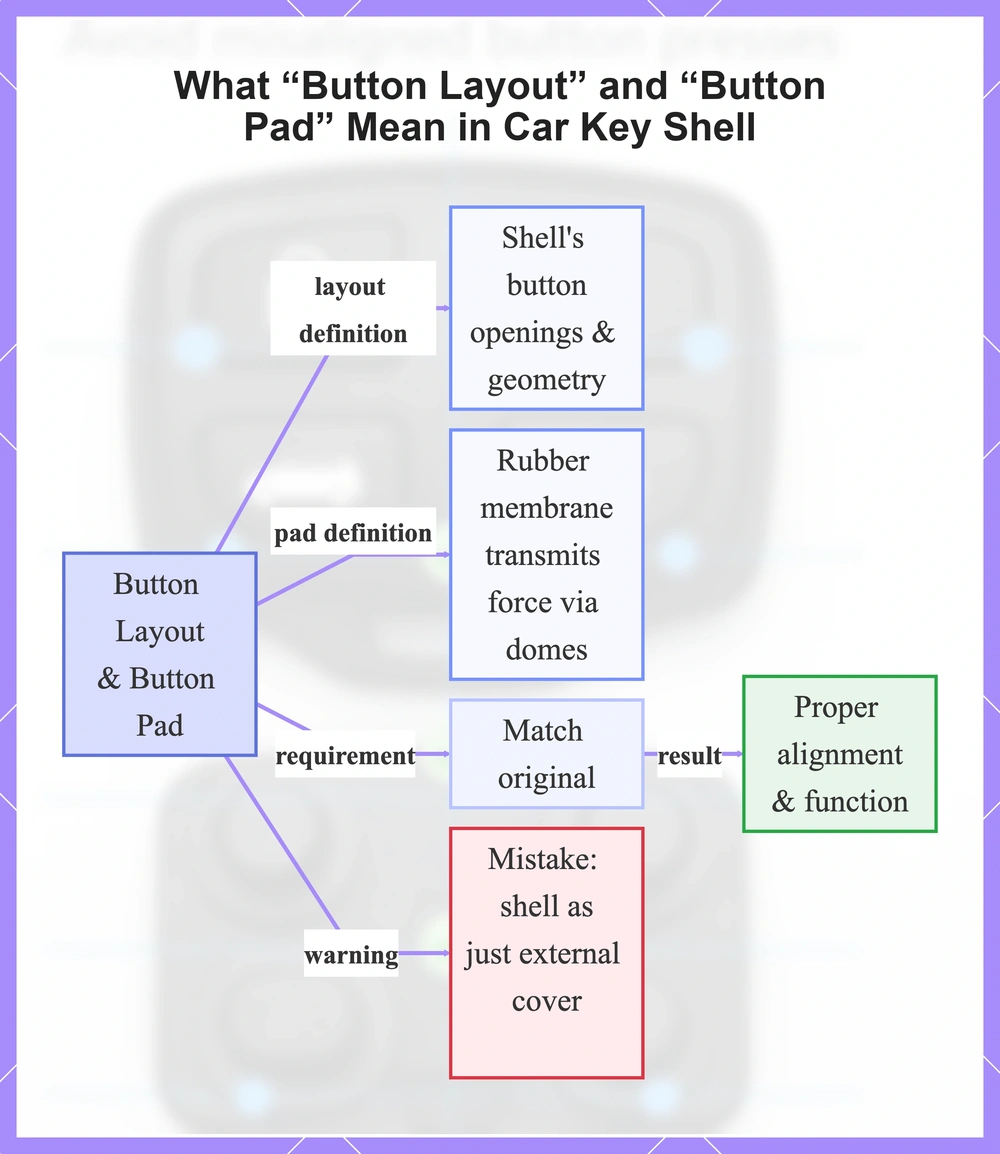

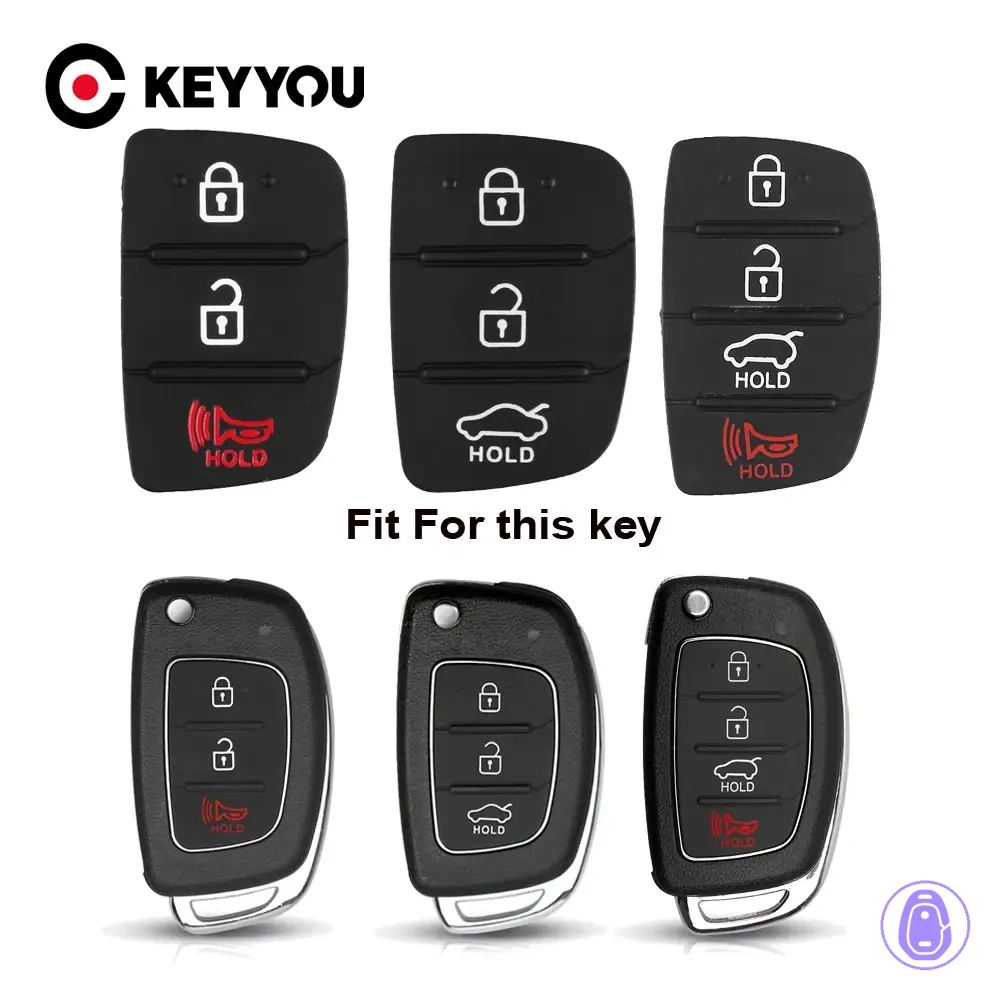

What “button layout” and “button pad” mean in a Car key shell

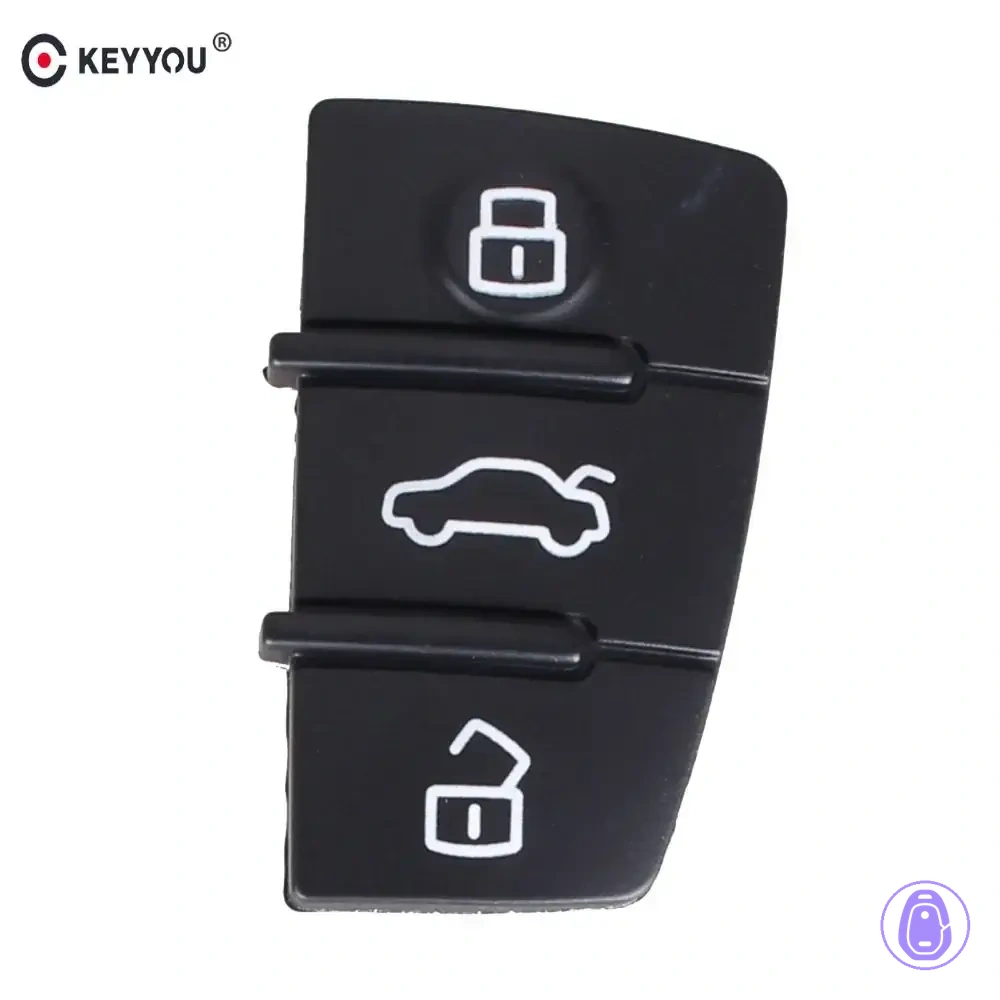

The button layout is the key fob shell's button openings, spacing, orientation, and press-point geometry. The button pad is the rubber membrane layer that transmits force from buttons to internal contact points through its domes and seating. Both the button layout and button pad must match the original for proper alignment and function.

People often mistake the key fob shell for just an external cover or case. That ignores the precise internal geometry.

Button layout and button pad include features visible externally and internal ones that must align for actuation:

• Button openings: visible shapes and positions on the shell surface
• Spacing and orientation: external arrangement matching button count
• Press-point posts or plungers: internal shell features directing force
• Rubber membrane domes: collapsible pad elements for pressure transmission
• Contact points: internal contacts activated by the button pad

These parts work together to register button presses.

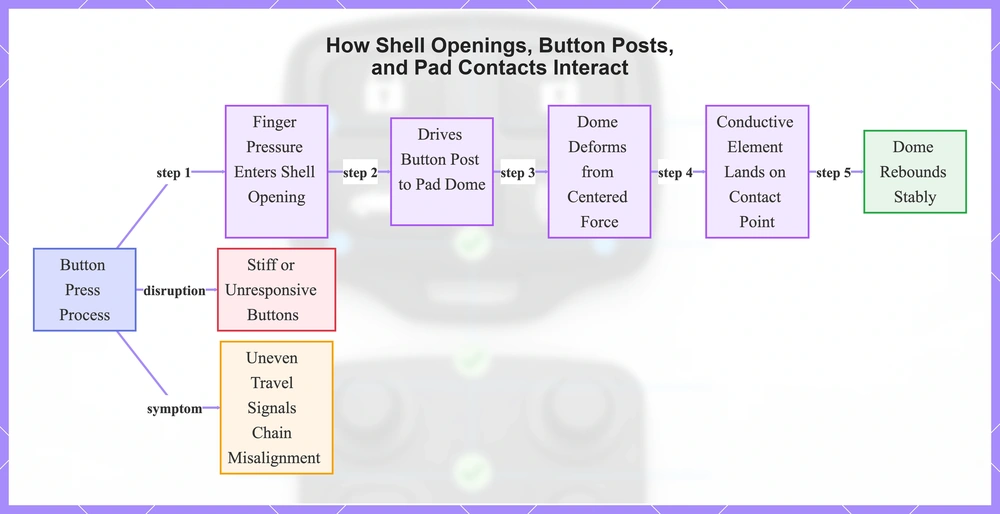

This flowchart defines button layout and button pad in a car key shell, key features they include, matching requirement, and a common mistake.

How the shell openings, button posts, and pad contact points interact

Finger pressure passes through the shell opening and drives the plunger or post along press travel to deform the pad dome. Dome collapse can position the conductive element at the landing on the contact point to register input. Disruptions often make buttons feel stiff or unresponsive. Uneven travel signals chain misalignment, while smooth presses depend on centered force, unobstructed travel, stable dome rebound, and correct landing.

Press path:

• Finger pressure enters shell opening to contact plunger or post.
• Plunger or post moves along unobstructed press travel toward pad dome.
• Dome receives centered force and deforms.
• Dome collapse positions conductive element for correct landing on contact point.
• Dome rebounds stably to reset for next actuation.

This flowchart illustrates the button press process involving shell openings, posts, and pad contacts, plus common disruption symptoms.

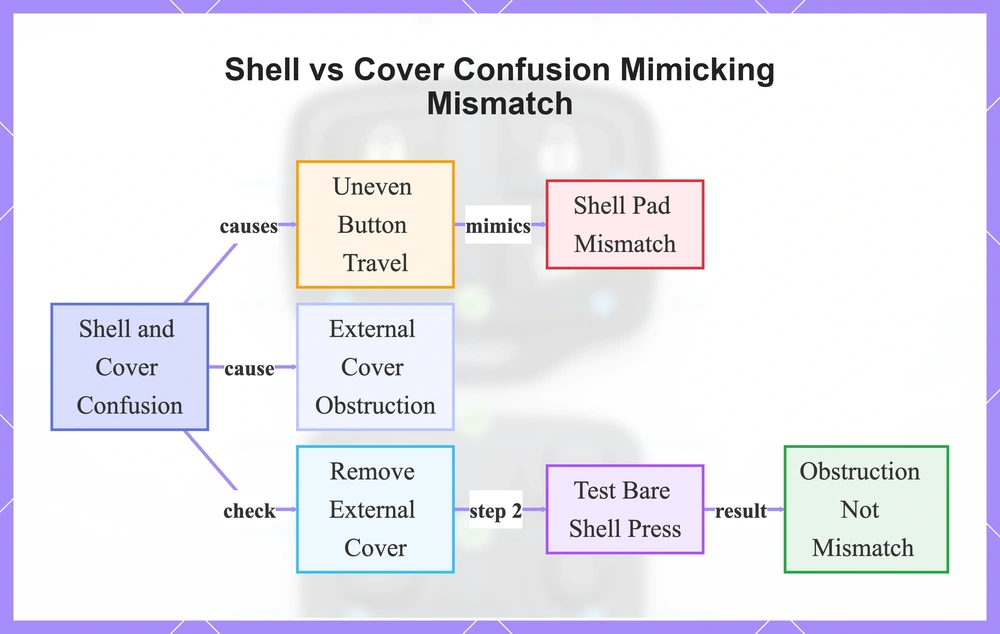

How shell vs cover confusion can make alignment problems look like a mismatch

Confusing the shell with its cover often makes uneven button travel seem like a car key shell and pad mismatch. External covers or cases can obstruct travel, shift press points, or create interference through blocked edges and poor cutouts, mimicking dampened actuation—even when shell and pad align perfectly.

Diagnostic check: When you remove the cover and presses feel normal again, it's obstruction, not mismatch. Test the bare shell to eliminate external variables before judging compatibility.

1. Remove any cover, case, skin, or sleeve from the car key shell.
2. Test the bare shell and pad directly for smooth travel and press feel.
3. Inspect cutouts and edges for interference or shifting contact points.

This flowchart diagnoses how shell-cover confusion causes uneven button travel to mimic shell-pad mismatch and outlines the key test to confirm obstruction.

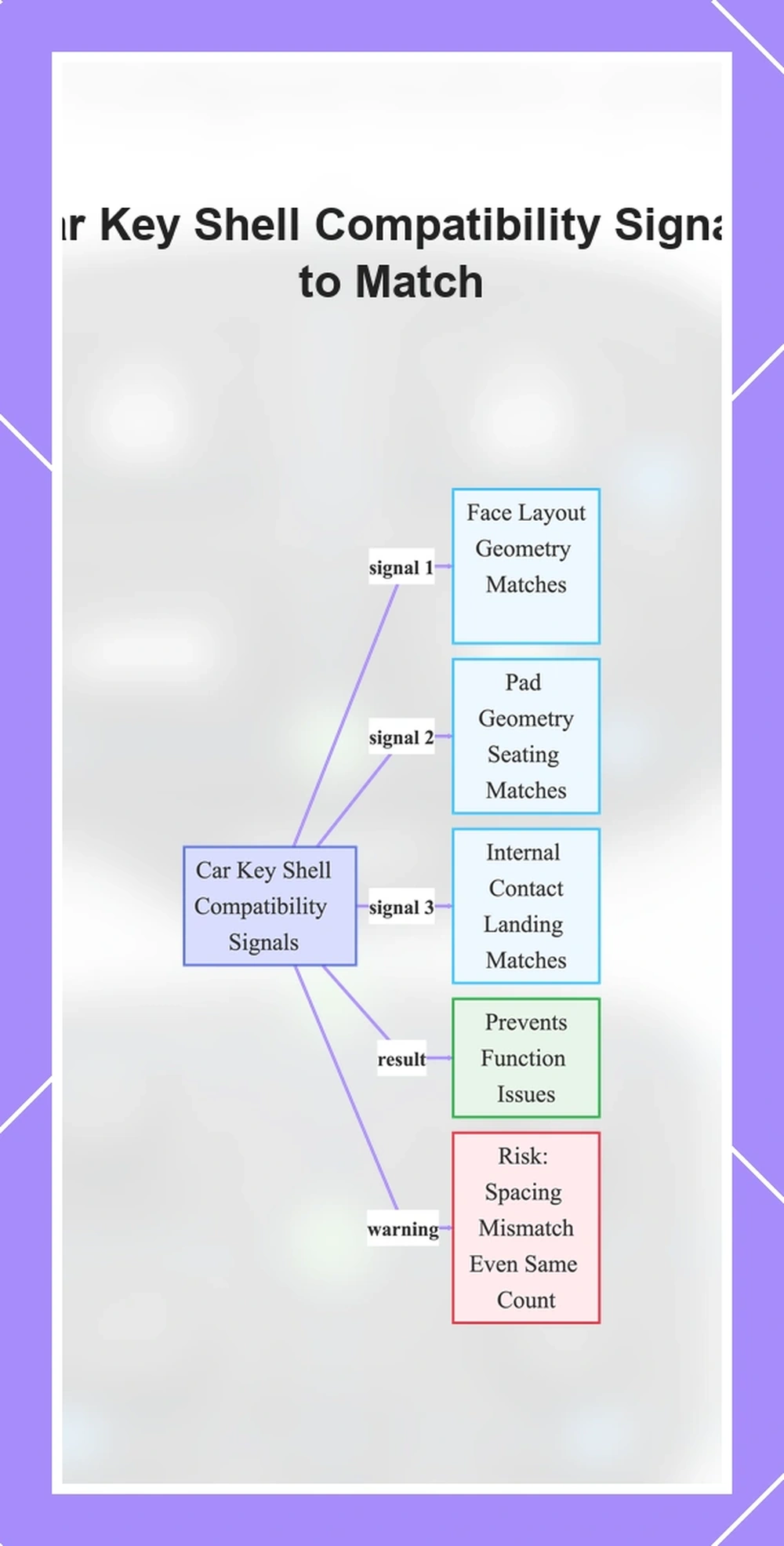

The compatibility signals that must match before you buy or swap

Face layout geometry, pad geometry and seating, and internal contact landing alignment must match. These signals ensure the car key shell's button layout aligns with the button pad to prevent function issues.

A shell with the same button count as the original pad can still have mismatched spacing. Face layout geometry signals include button count, spacing, shape, and orientation. They must match so buttons align over pad domes. Even if shapes look similar, off-center orientation shifts presses away from contacts.

The pad may fail to seat correctly into the shell. This causes edge retention issues or dome displacement. Pad geometry signals include seating, lip fit, and edge retention to hold the pad stable. Internal contact landing alignment registers contact points with switches below each button.

Face Match Signals

• Button count matches the original
• Spacing between buttons matches
• Button shape and size align
• Orientation (e.g., lock/unlock positions) fits

Pad Seating Signals

• Pad lip seats into shell groove
• Edge retention holds pad flat
• Domes align under buttons

Contact Landing Signals

• Contact points align with switches

This flowchart shows the essential signals that must match the original, their role in preventing issues, and a key mismatch risk for car key shell buys or swaps.

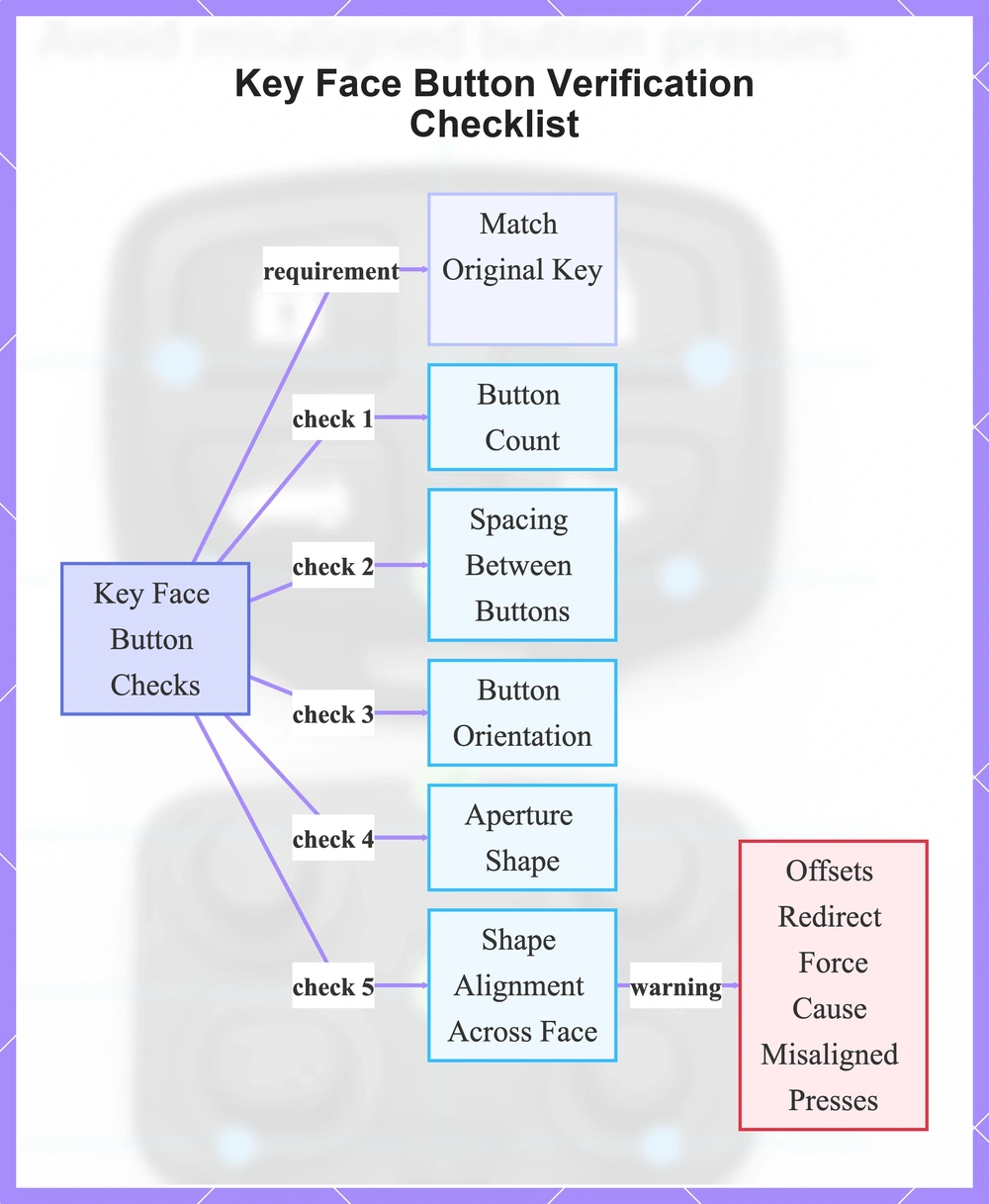

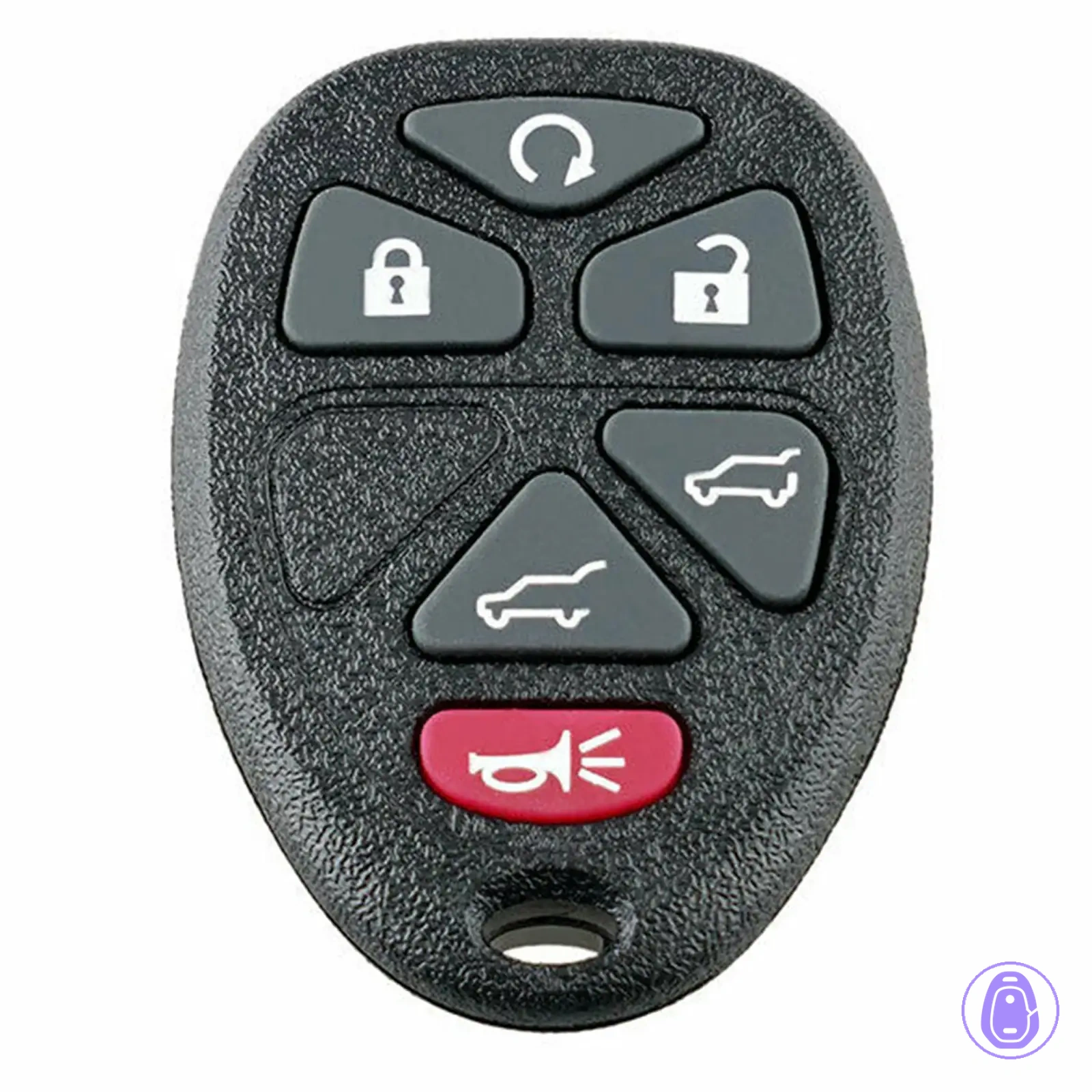

Button count, spacing, and shape alignment across the face

Button count, spacing, orientation, and aperture shape on the face must match the original key. Small offsets in alignment can redirect force and cause misaligned presses. Check these face attributes before internal checks.

• Button count
• Spacing between buttons across the face
• Button orientation
• Aperture shape
• Shape alignment across the face

This flowchart lists the key face attributes to match against the original key, including checks for count, spacing, orientation, aperture shape, alignment, and the risk of misaligned presses.

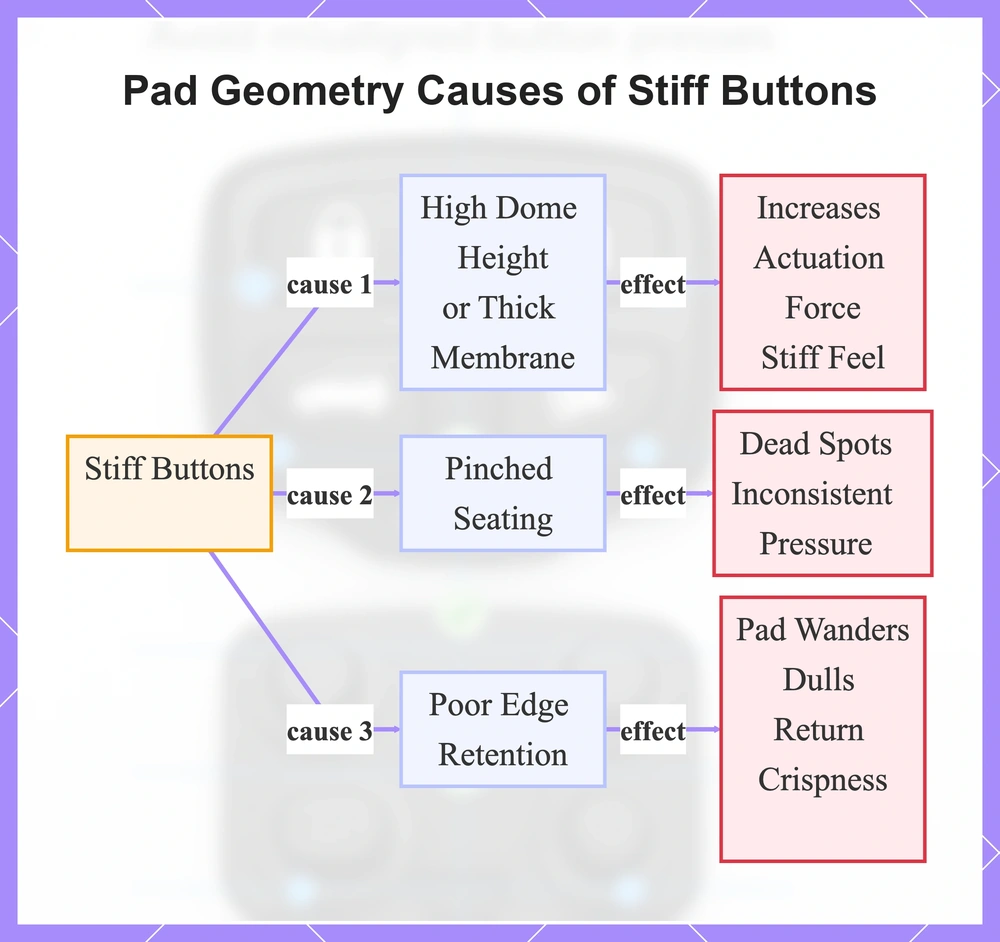

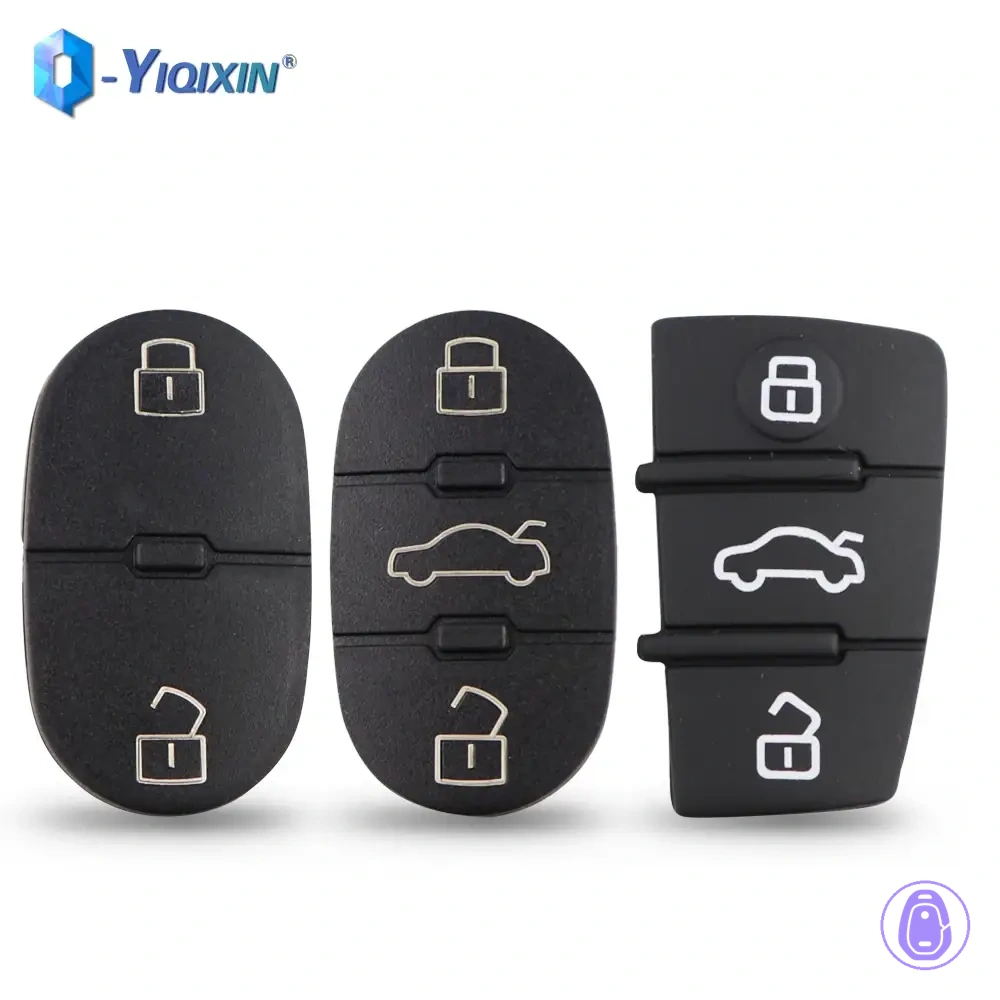

Pad geometry and seating: dome shape, thickness, and edge retention

Stiff buttons often stem from dome height or membrane thickness, especially when paired with pinched seating. Dome height affects actuation force, while thickness adds resistance that can make presses feel too firm if unbalanced. Edge retention secures the pad against wandering, and proper seating prevents dead spots from misalignment.

• High dome height or thick membrane: increases actuation force for a stiff feel.
• Pinched seating: creates dead spots or inconsistent pressure points.
• Poor edge retention: lets the pad wander, dulling return crispness.
• Bowed pad from uneven seating: leads to mushy or variable response.
• Overly stiff domes: hinder smooth return if retention fails.

This flowchart shows how pad geometry and seating defects cause stiff buttons through specific factors and their effects.

Rubber membrane fit and sealing lip: why correct seating affects feel and moisture protection

Correctly seating the rubber membrane's perimeter sealing lip presses it evenly against the shell, with no folds or gaps. This supports consistent button travel, responsiveness, and feel.

Basic resistance to moisture varies by design, while poor seating leads to inconsistent travel.

• Flush perimeter contact along the entire sealing lip
• No folds or bunching along the sealing lip
• No corner gaps between lip and shell rim
• Even seating pressure without distortion
• Smooth transition at all contact points

Contact alignment: where the pad must land to trigger the internal switch reliably

The button pad must land squarely on the contact point of the internal switch for reliable actuation. An offset landing—often from rotation, mirrored shells, or mismatched internal posts—prevents reliable triggering. Intermittent presses frequently signal unstable landing on the contact point.

Stable landing

• Pad centers directly on the contact point
• No noticeable rotation or mismatch

Offset landing

• Pad misses the contact point
• May require excessive force or fail intermittently

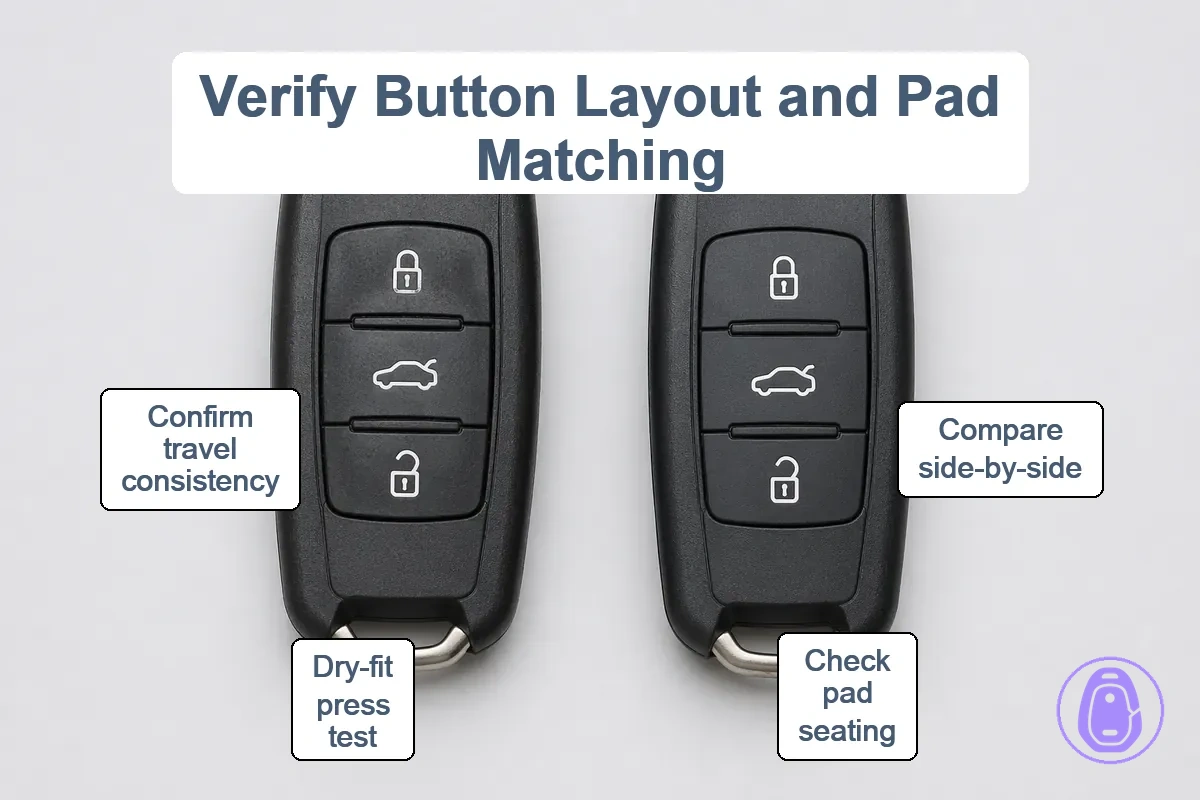

How to verify button layout and pad matching using your original key

Use your original key as the reference to verify button layout and pad matching in the new shell. Place them side by side and gently press the buttons to confirm orientation and travel consistency before assembly.

Mismatched button layouts or pads can prevent buttons from registering properly during use. Lay the original key next to the new shell to spot orientation differences. Then do a dry-fit without force to check alignment and test travel consistency.

1. Place the original key next to the new shell to compare orientation.
2. Compare the face layout side-by-side with the reference.
3. Check pad seating for even positioning.
4. Do a gentle dry-fit press test on each button.
5. Confirm smooth travel consistency across all buttons.
6. Stop if any binding or resistance occurs.

• All buttons press with even depth.
• No button feels stiff or uneven.
• Buttons register without sticking.
• Travel consistency matches across the layout.
• Gentle presses return smoothly.

Related alignment appears in the Fit check workflow.

Stop and re-check these criteria if buttons appear misaligned, feel stiff, or do not press evenly, rather than forcing a fit.

Face-to-face visual matching and orientation checks

Hold two key shells face-to-face and align fixed reference points—the keyring end, blade end, and logo side—to verify orientation before any press test. Rotate or flip as needed to match and avoid mirrored layouts that look similar but press wrong.

• Match the keyring end position and shape.
• Align the blade end contour.
• Confirm the logo side orientation matches.
• Check the button pad alignment relative to the keyring end.
• Check the overall side profile for rotation mismatch.

Dry-fit pressure testing before full assembly

In a dry-fit car key shell, buttons can show uneven travel or inconsistent engagement from alignment problems. Before full assembly, run a gentle press test with light pressure to confirm consistent travel and engagement across all buttons.

Buttons that fail to register under light pressure may signal misalignment. Stop and re-check alignment if binding or abnormal force shows up.

1. Position the shell components in dry-fit without fully securing; observe alignment across all buttons.
2. Press with light pressure on the center of the first button; observe travel and engagement.
3. Repeat with light pressure on each other button; observe travel and engagement consistency across buttons.
4. Check for binding or stiff resistance needing abnormal force; stop immediately if found.
5. Check for edge-only activation or uneven travel; re-check alignment if inconsistencies appear.

Common comparison mistakes that create false “matches”

These mistakes cause false matches when checking button layouts.

• Wrong orientation—like mirrored buttons or wrong side up → verify orientation.
• Matching only button count → verify spacing and layout.
• Ignoring pinched edges, folds, or gaps in seating → ensure smooth seating.
• Assuming any membrane fits → verify membrane shape and thickness.

How mismatches show up in real use and what each symptom usually indicates

Layout mismatches between car key shell buttons and pad create specific symptoms that point to likely causes like alignment failures. A misaligned press usually signals spacing or offset problems, while stiff buttons or dead spots reveal pad geometry or contact landing issues. These symptoms likely indicate a mismatch but need confirmation.

You notice a misaligned press when the button activates only on the edge in normal use. Stiff buttons resist full travel. Dead spots fail to register in the center, and intermittent presses happen unpredictably.

Symptom	Most likely mismatch class
Misaligned press	spacing or offset, leading to edge-only activation.
Stiff buttons	thickness or pinched dome, creating resistance.
Dead spot	poor contact point landing or register failure.
Intermittent presses	seating shift or wobble.
Not pressing	overall unresponsive alignment.
Inconsistent response	combines multiple mismatch classes.

Not every "button not working" problem signals a mismatch—wear or damage plays a role too. Some issues have nothing to do with compatibility. For clarification, check Buttons not working fixes or run a compatibility test.

Question: Button not pressing after shell swap?

Answer: This may point to a layout mismatch. A misaligned press or dead spot often results when pad geometry fails to align with the shell.

Question: Stiff buttons after replacement?

Answer: Stiffness usually signals thickness or pinched dome issues. Seating wobble or poor pad contact landing adds resistance.

Misaligned presses from spacing or offset errors

Spacing or offset errors in button layout can shift the press point away from the post or dome center. This causes misaligned presses and unreliable activation. Re-check face alignment to ensure proper press point positioning.

• Edge-only activation: button edge triggers but center does not
• Adjacent button movement: pressing one affects the neighbor
• Inconsistent travel: distance varies across multiple presses

Stiff or hard-to-press buttons from pad thickness, dome shape, or pinched seating

Stiff buttons may come from pad thickness, dome shape, or pinched seating rather than face layout mismatch.

• Excessive pad thickness can increase resistance. Press gently without force. If it feels too firm instead of smooth travel, adjustment may ease it.
• Improper dome shape may cause resistance. Check for flattened or uneven domes with light presses. If binding appears, alignment can free up travel.
• Pinched edges from poor seating can bind travel. Check for folds or edge catches. Releasing them may smooth presses.

If binding occurs, stop checking, as forcing the fit risks further damage.

Dead spots or intermittent presses when the pad does not land on the contact point

Dead spots happen when the pad mis-lands or lands unstably on the internal contact point. Presses fail to register properly in these cases. Pad rotation creates an offset miss, shifted seating causes inconsistent contact, or mismatched internal posts may prevent stable alignment. Check for consistent versus intermittent patterns to reassess match criteria.

• Consistent dead spot: suggests fixed misalignment, like a persistent offset.
• Intermittent presses: suggests seating shift or wobble.

When button problems are not a layout or pad mismatch

Button problems in car key shells can mimic layout or pad incompatibility but often come from other causes. Rule out contamination and corrosion, battery contact issues, and obstructions from external covers first.

Unresponsive buttons often stem from contamination or residue buildup that blocks contact, corrosion on terminals that disrupts it, poor battery terminal seating that cuts power flow, or a tight cover that obstructs button travel. If issues persist, they may signal a layout or pad mismatch.

• Compatibility mismatch: Button layout fails to align with pads.
• Non-mismatch cause: Contamination, corrosion, or obstructions block function despite alignment.

Cleanliness

• Contamination or residue on buttons and pads.
• Corrosion on surfaces.

Power contact

• Battery seating or terminal contact problems.
• Corrosion on battery terminals.

Obstructions

• External cover blocking button travel.
• Cover cutouts restricting button movement.

Dirt, residue, or corrosion that prevents good contact even with a correct match

Buildup like dirt, residue, or corrosion causes intermittent button pad responses. It mimics layout mismatch symptoms with inconsistent or delayed activation, unlike consistent offsets from incorrect matches.

Check the list for safe inspection and gentle cleaning to confirm if contamination interferes with contact.

• Look closely at pads for dirt, grime, residue, or corrosion.
• Wipe contacts gently with a soft brush and dry cloth.
• Test for intermittent response with light button presses.
• Let surfaces dry fully before retesting contact.
• Avoid abrasive tools to prevent damage to contact surfaces.

Battery or terminal contact issues that mimic button failure

A poorly oriented or seated battery can disrupt terminal contact and power, making buttons unresponsive even with correct layout and pad matching. If all buttons fail the same way, power or contact issues are more likely than layout mismatch.

• Check battery orientation to rule out reversed installation that may block power flow.
• Check battery seating to rule out inconsistent terminal contact.
• Check visible terminal contact or spring for corrosion that may disrupt power delivery.
• Check if the terminal clip grips the battery securely to rule out intermittent power from loose connections.

Outer covers and obstructions that shift the press point or block travel

These can shift the press point or block travel, causing inconsistent button responses. Remove the cover to test the button layout and pad directly—this isolates obstruction effects from compatibility issues. If travel stays consistent and the press point aligns without the cover, an obstruction is the cause.

• Check for a thick cover lip pressing against edges, which can shift the press point.
• Inspect for misaligned cutouts that can cause obstruction and limit button travel.
• Look for debris or buildup at cover edges that can cause blocked travel.

Choosing the right replacement approach when the pad or layout doesn’t match

When the pad or layout doesn’t match, pick a correction path based on mismatch type to avoid wasted swaps.

Mismatched pads lead to issues like poor landing, altered feel, or travel problems from geometry and alignment differences. Refer to the Replacement hub for decision scenarios.

• If pad dimensions and hole sizes align closely: reuse original pad to preserve feel and landing.
• If shape or geometry varies but overall layout matches: use matched shell-plus-pad set for better travel and alignment.
• If contact points mismatch: switch to different variant to cut forcing fit risks.

Forcing a fit to fix mismatches is a myth that overlooks risks like peel damage or separation. Forcing it often causes damage, so stop and assess mismatch type against the recommendations.

Question: Can I reuse the old rubber pad?

Answer: Yes, if mismatch type shows close dimensions and alignment.

Question: Why do buttons feel stiff after changing the shell?

Answer: Often due to pad-layout mismatch affecting geometry, travel, or alignment; check mismatch type first.

When reusing the original button pad is the safer compatibility choice

Reusing the original pad can reduce compatibility risk because it already matches the original landing and prior feel for reliable presses.

Reuse the original pad if these criteria apply. Handle it carefully to avoid stretching or pinching.

• Original pad remains intact without tears, stretching, or pinching.
• Seating features of the original pad align with the original landing points.
• Prior presses had reliable feel and consistent response.

When a matched shell-plus-pad set is required to restore correct travel and alignment

A matched set pairs shell geometry and pad geometry to deliver proper button travel and alignment. Mismatched geometry disrupts that pairing and often produces persistent stiffness. Spot these signs if a matched shell-plus-pad set may be required:

• Persistent stiffness during button presses
• Repeated dead spots in button response
• Visible seating mismatch between pad and shell
• Inconsistent travel distances
• Poor alignment on button landing

When to stop and switch to a different shell variant instead of forcing fit

Stop forcing fit when these red flags show up, as it risks damaging seating and worsening button responsiveness. Stop the test and reassess compatibility with another shell variant.

• Pinched membrane
• Binding travel
• Repeated button non-response
• Distorted seating

Where button layout and pad matching fits in the Car key shell compatibility workflow

Button layout and pad matching fit in the Car key shell compatibility workflow as one compatibility dimension among others, complementing broader fit confirmation. This page covers button-area compatibility; other fit dimensions require separate checks. Back to compatibility hub

You order a replacement shell online but find mismatched buttons after delivery. Situations like this call for a symptom check to catch layout issues early. Button layout and pad matching serve as a key verification step in the workflow. This mini-checklist shows when to run the check.

• Before buying: Verify number and positions of buttons against your key to match layout and avoid waste.
• Before assembly: Dry-fit the internals and conduct a press test to confirm pad alignment.
• Symptom check: Troubleshoot unresponsive buttons by re-checking layout for mismatch.

How this check relates to broader fit confirmation before replacement

Users often confuse this check with overall shell fit confirmation. Its scope covers press alignment and pad matching in the button area where designs vary, without checking the full shell outline. Broader fit confirmation checks overall shell fit as a separate step in the Fit check workflow when full verification is needed.

When the issue becomes post-swap troubleshooting instead of compatibility

These button responsiveness symptoms show when the issue shifts to post-swap troubleshooting instead of compatibility. For persistent issues, see Buttons not working fixes.

Match confirmed:

• Consistent button travel under finger pressure
• Presses register reliably
• Consistent responsiveness across pads

Mismatch still likely:

• Dead spot where button fails to register
• Buttons feel stiff or resistant
• Misaligned contact with intermittent response
