Car key shell fit check: confirm a match using size, outline, and visual cues

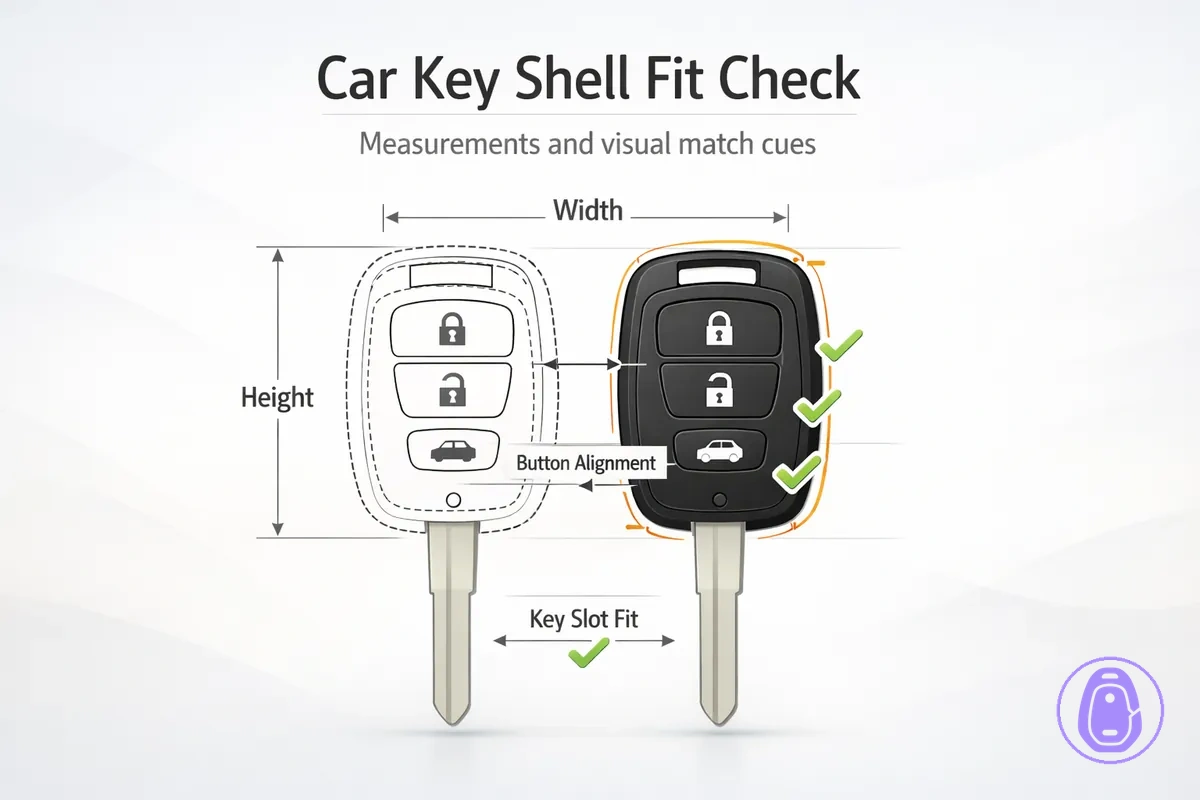

A car key shell fit check helps determine if a replacement housing is a likely external match for your current key fob shell. Simple observations of the outer shell build confidence before buying or swapping. It focuses on external fit signals only and supports but does not replace deeper compatibility verification.

Measurements, outline, and visual cues on the housing set a pass or fail expectation. Comparing cutouts, seams, and alignment points side-by-side verifies a likely match. Strong signals suggest external sizing alignment but cannot verify internal fit. Results depend on the specific key fob design.

• External match signals: similar outline, consistent measurements, aligned seams and cutouts.
• Non-size constraints: internal and functional factors.

What this fit check verifies and where it stops being reliable

A car key shell fit check based on sizing verifies whether the outer housing dimensions and shape align closely enough for external compatibility. It confirms a likely match when overall length, width, outline silhouette, and key visible features like button cutouts and seam lines appear consistent from top-down views. This approach provides a strong initial signal that the replacement shell housing can accept the internal components without obvious size conflicts.

However, sizing checks cannot guarantee full functionality or internal fit, as they overlook precise tolerances, material flex, and component-specific alignments. Results depend on consistent reference points and photo quality, and even close external matches may fail due to non-size factors. A passing size check supports proceeding but requires deeper verification.

• External match signals: outline shape, overall dimensions, button cutout positions, seam continuity, keyring loop placement.
• Non-size constraints (not verified here): button pad mapping, blade/hinge fit, clip tension, internal clearance.

Back to compatibility hub

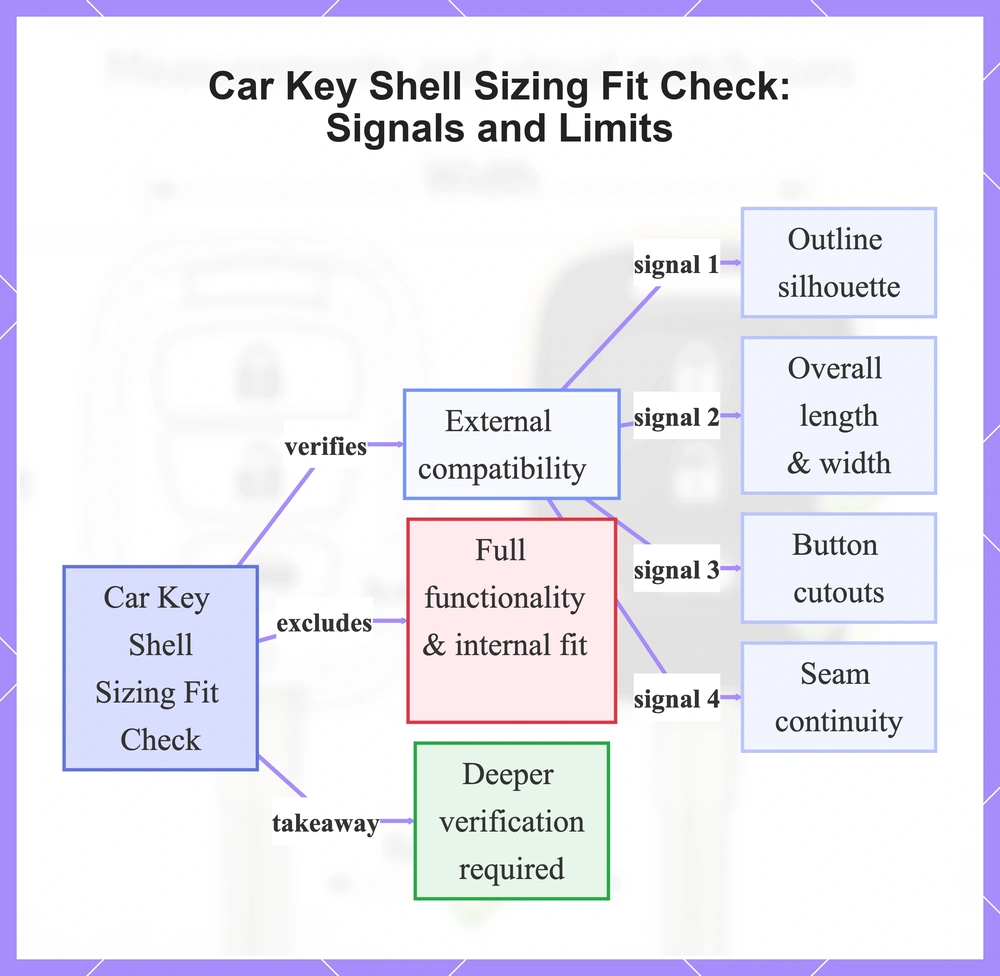

This flowchart shows what the sizing fit check verifies through key external signals, what it excludes, and the reliability takeaway.

Prepare a like-for-like comparison so your size check is trustworthy

Use consistent setup controls with shared reference points for a car key shell size check. They help avoid false matches.

• Align both shells using the same orientation and reference point on the top edge.
• Position edges parallel to a straight reference point like a ruler edge.
• Use a top-down view with even lighting across the baseline shell.
• Match measurement points at consistent locations, such as button zone centers.
• Keep the same position for keyring loop and seam line reference points.
• Avoid camera angle changes that introduce photo perspective distortion.
• A worn, cracked, or deformed baseline shell can lower confidence, as distortion may change the measured shape.

Mismatched orientation or poor camera angle often hides edge misalignment or measurement point differences, leading to false matches. Small perspective shifts in photos can exaggerate or shrink apparent size without repeatable setup. Reset to shared reference points before each comparison and re-check them for reliability.

Caution: Top-down images alone miss shell thickness variations.

• Photo perspective can distort outline proportions even in similar views.
• Shell thickness stays hidden from top-down, which can affect size predictions.

Car key shell examples using these controls show reliable size alignment without comparing items.

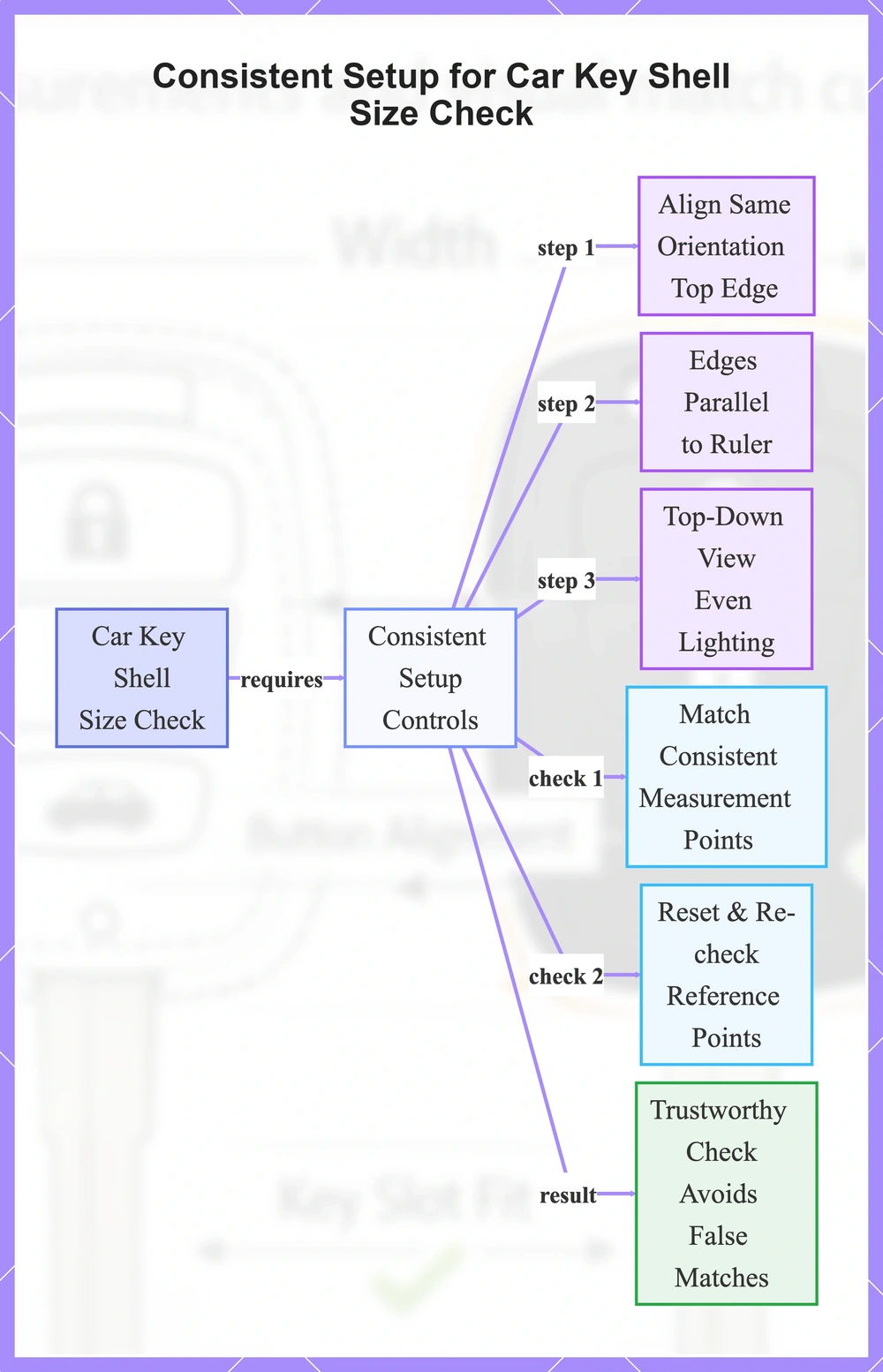

This flowchart shows the key consistent setup controls, steps, checks, and outcome for trustworthy like-for-like car key shell size comparisons.

Quick outline match: shape cues that rule in or rule out a shell fast

• Compare the overall outline and silhouette from a top view for a close perimeter and footprint match.
• Check corner radius consistency along edges in top view and side profile.
• Align seam line positions to spot any gaps or misalignment.
• Match keyring loop placement relative to the outline perimeter.
• Verify cutout shape alignment.
• Ensure side profile curvature follows the same edge flow without obvious mismatch.
• Scan for seam line continuity across the silhouette without breaks.
• Photo angle and perspective can hide depth and curvature differences, creating a false outline match.

Items shown as examples of different outlines help illustrate these cues without guaranteeing fit.

Put candidate car key shell photos side by side with your original. Start with these visual filters in a top view to rule out obvious non-matches quickly. Align images using consistent reference points like the keyring loop or seam line for reliable shape comparison. Scan each cue in sequence, noting any perimeter or footprint mismatch that stands out. Similar silhouettes can mislead due to different thickness or seam geometry, which top views alone may miss. If cues align closely with no clear mismatch, move to measurements for confirmation.

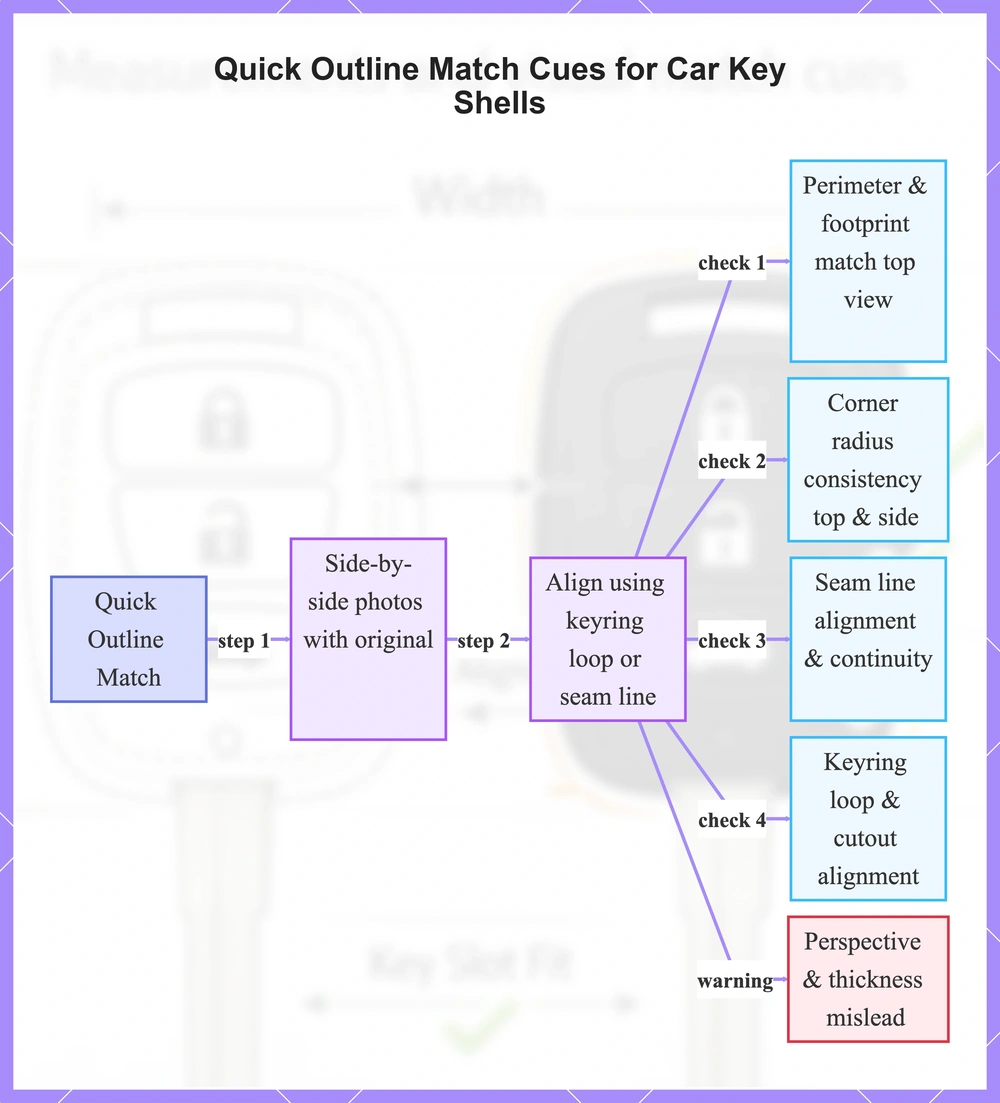

This flowchart shows the process and key visual cues to quickly rule out non-matching car key shells by outline comparison, with pitfalls to watch.

Fit template and tracing checks for outline matching when photos are misleading

Photos can mislead from angle distortion or unclear scale. Make a simple paper template by tracing your current car key shell, then overlay it on candidate images using consistent reference points.

1. Trace the outline of your current car key shell onto thin paper, capturing curves and cutouts using fixed reference points for alignment.
2. Check if the tracing aligns with the shell by overlaying it back on the original housing and noting any shifts.
3. Print the candidate shell image at a controlled print size that matches your traced template's scale.
4. Overlay the template on the printed candidate image, aligning reference points like edges or keyring loops first.
5. Inspect for partial mismatch along curves, cutouts, and overall alignment, noting areas where the template fails to sit flat.
6. Perform a scale sanity-check by measuring a straight reference point on both the template and print to check for distortion.

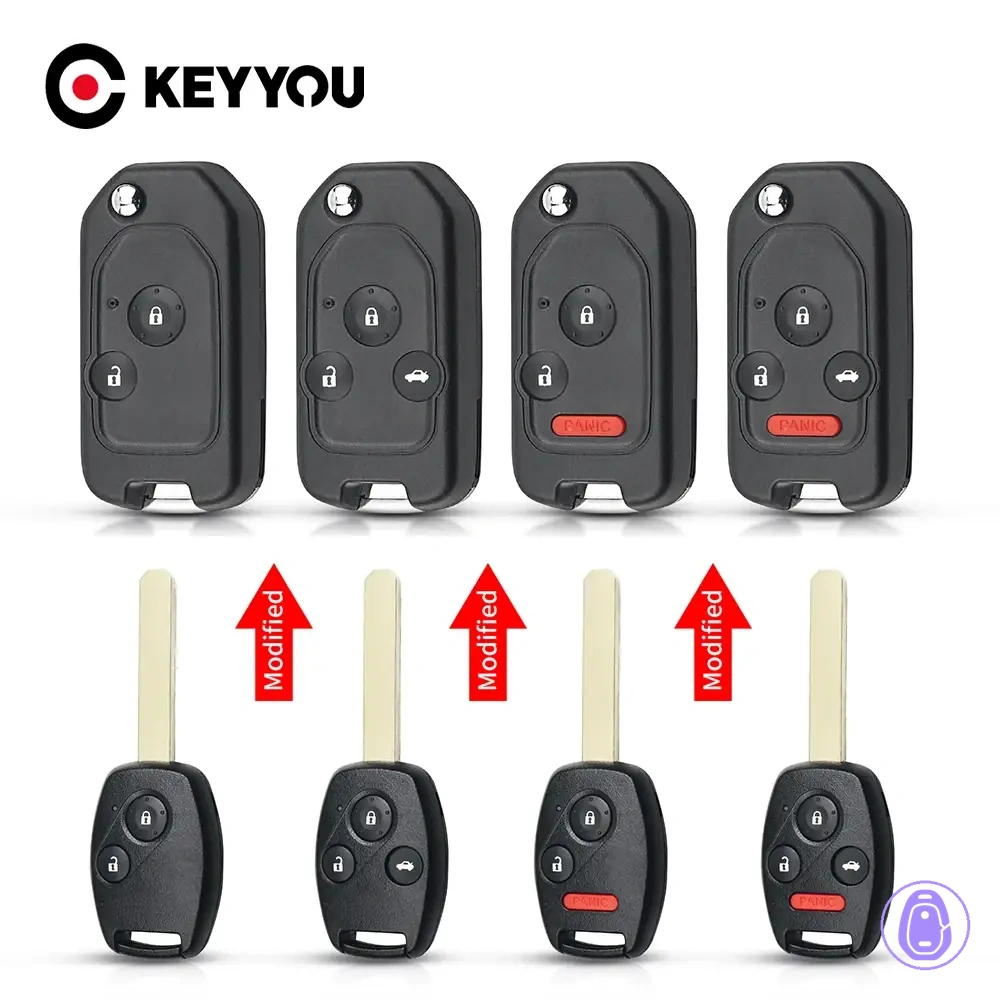

Car key shell outline variants serve as examples to test these tracing and overlay checks.

Gaps or overlaps around curves or cutouts signal a likely mismatch for housing fit. Print size errors or photo distortion often cause these issues, so recheck scale and reference points before deciding. Treat clustered mismatches around key areas as likely fails.

• Minor cosmetic mismatch: slight perimeter wiggles that do not disrupt overall overlay.
• Functional mismatch zones: offsets in cutouts or curves that prevent clean alignment.

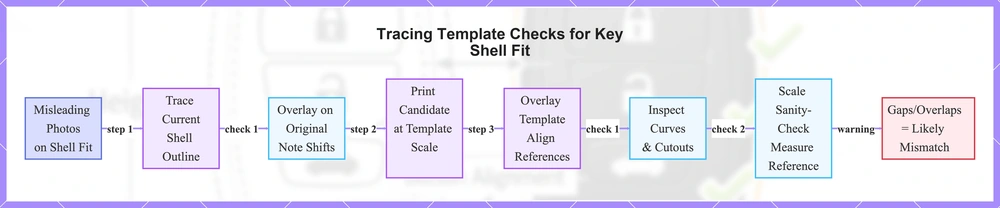

This flowchart shows the step-by-step process to create a tracing template and verify car key shell outlines against potentially misleading photos.

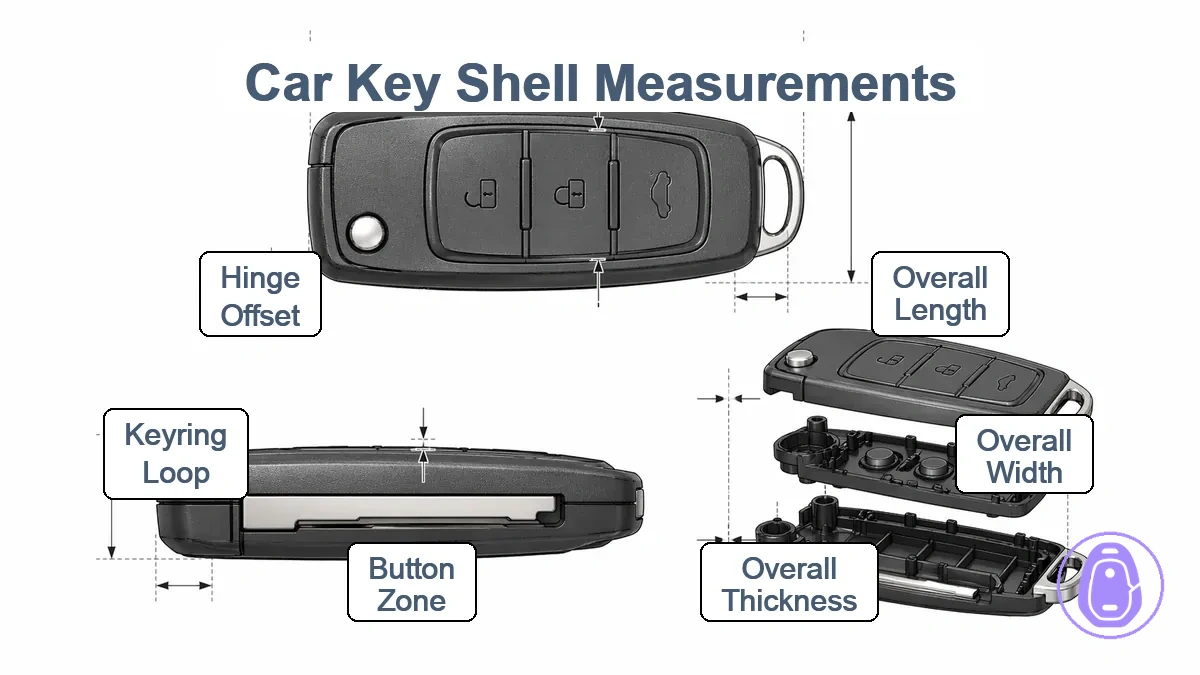

Core measurements that decide whether the housing is the same size

Key measurement points for a car key shell size profile include overall length, width, thickness, and localized details around functional areas.

Measurement Point	Location	Purpose
Overall length	Longest dimension from end to end, using reference edges	Checks primary housing span alignment
Overall width	Widest point across the housing	Verifies side-to-side consistency
Overall thickness	Thinnest profile from top to bottom	Assesses depth for closure
Localized thickness at button zone	Around button cutouts and pad area	Evaluates clearance and cutout depth
Offset at keyring loop	Position and protrusion of loop area	Confirms seam line and attachment points
Offset near hinge area boundary	Edge near hinge pivot	Verifies pivot location alignment

A car key shell size profile emerges when length, width, thickness, and offsets align across measurement points with consistent reference edges. Button zone localized thickness provides clearance cues, while keyring loop and hinge area offsets reveal seam line positioning. View these together rather than in isolation, as one dimension alone cannot confirm fit due to tolerance variations in housing designs.

Consistency in alignment supports a likely match. When measurements form a matching profile but the outline appears inconsistent, re-check alignment and template method.

Measurement sanity-check: False precision arises from inconsistent reference points like varying edges or angles. Repeat from the same baseline for reliable comparison.

Button-zone sizing cues: spacing and cutout alignment as fit signals

A car key shell fit check in the button zone relies on button spacing, button cutouts, and alignment with the openings as key external signals. Misalignment typically shows as shifted presses where buttons feel off-center, rubbing edges along the cutouts, or uneven gaps around the button zone.

Window depth serves as another signal, where shallow clearance can lead to binding during use. Button layout and pad matching provides related context, but treat repeated misalignment signs as a fail signal.

• Button spacing between centers shows close match to the original shell.
• Button cutouts align with the housing outline match.
• Button edges align precisely with surrounding openings.
• Spacing stays even around all button cutouts without crowding.
• Window depth positions buttons flush without excess play.
• Clearance avoids rubbing between button edges and cutout walls.
• Uneven gaps signal poor fit in the button zone.
• Matching cutouts does not confirm correct button pad mapping; this is a boundary cue for further checks.

• Looks aligned: cutouts match visually from top view.
• Presses aligned: buttons contact evenly without shift or rub.
• Visual match alone can mislead if depth or spacing varies.

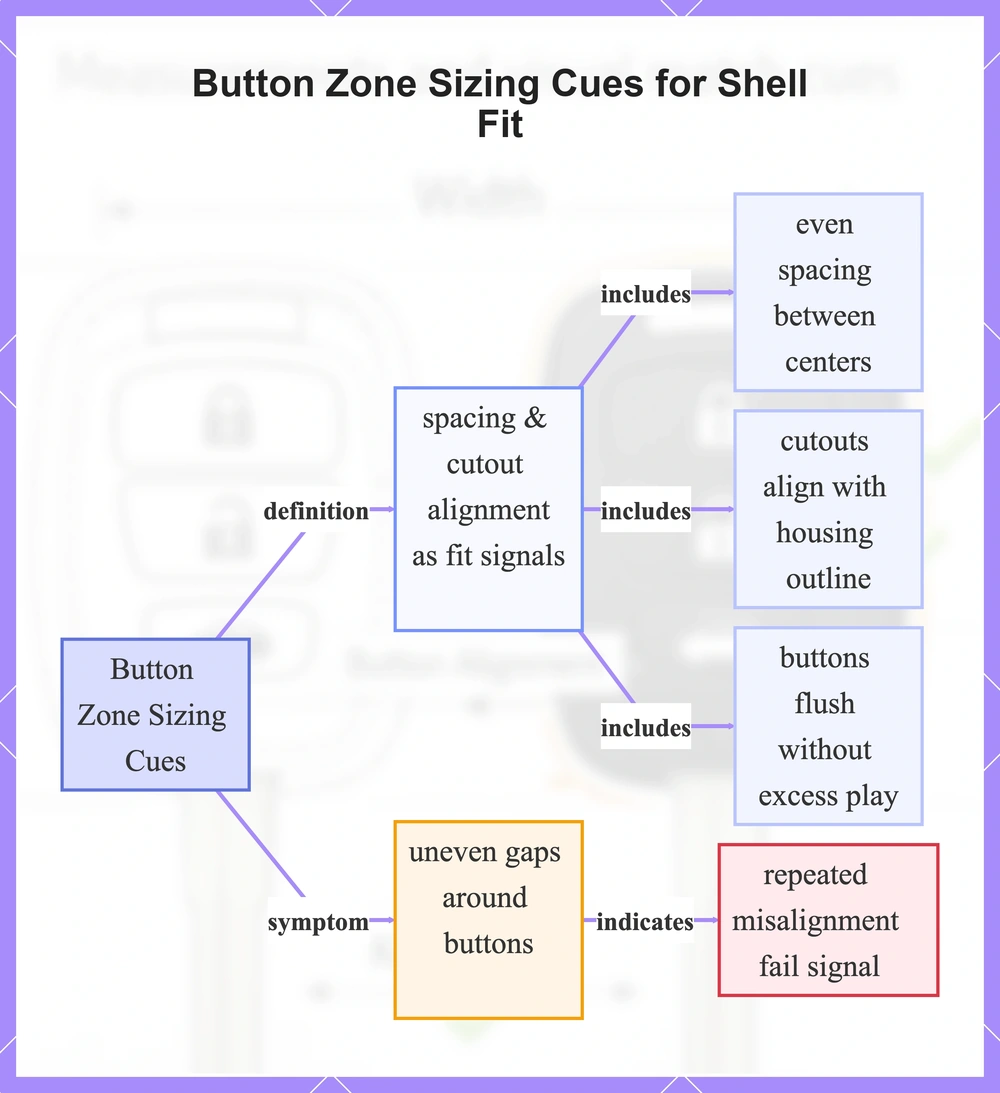

This flowchart shows the key spacing, alignment, and depth cues for checking car key shell fit in the button zone, including good indicators, misalignment symptoms, and fail signals.

Tolerance and failure signals: when a near-match still creates gaps or stress

Failure signals show when a car key shell housing nearly matches in size and outline but still risks closure gaps or stress. These include uneven seam compression, forced clip closure, persistent gaps, and stress concentrations near corners and cutout edges. Spot them during test fits to avoid long-term problems.

• Uneven gaps along the seam line with one side compressing more.
• Seam edges that do not meet flush under compression.
• Forced closure where clips snap with high resistance or unusual sound.
• Clips that require extra pressure to engage fully.
• Persistent gaps that remain after pressing halves together firmly.
• Stress points visible as whitening or deformation near corners.
• Cutout edges that bind or show misalignment under light pressure.
• Cosmetic gaps that widen into closure resistance when fully seated.
• Overall misalignment where halves shift during handling.
• Stop if closure must be forced.

Myth: small gaps or minor resistance mean the housing will settle over time. Truth: these signals can indicate long-term issues like widening gaps, seam separation, or crack risk from repeated stress. Uneven seam compression can lead to progressive loosening, while forced clip closure can create pinch points that weaken over cycles. Stress concentrations near corners and cutout edges can amplify crack risk, especially with wear or brittle plastics. Damage risk depends on material and stress, so treat these as stop signals.

Caution: Forcing closure increases risk of cracks or persistent gaps that worsen with use, though exact outcome varies by housing material and assembly pressure.

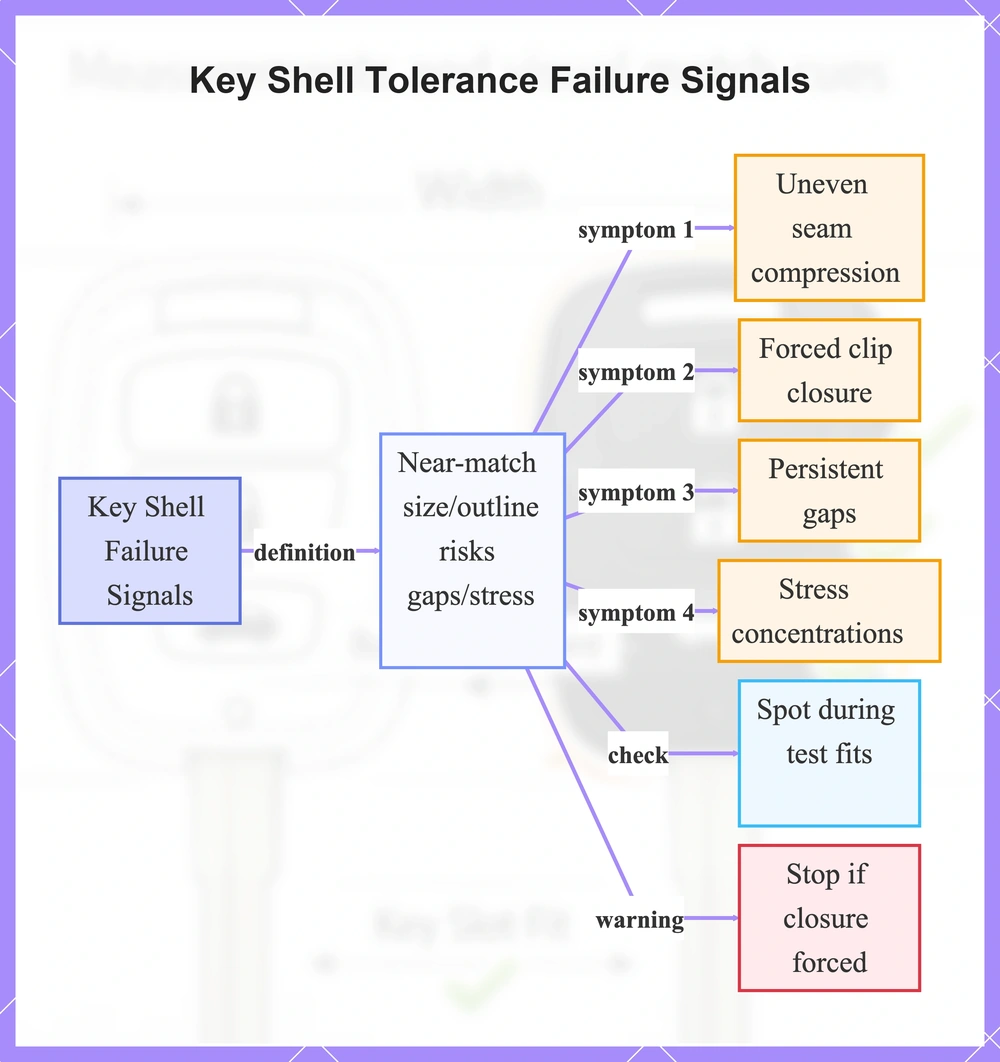

This flowchart details failure signals of near-match car key shell housings that risk gaps or stress, key symptoms to spot during test fits, and stop conditions.

Final pass-fail fit checklist you can run in under two minutes

Use this numbered checklist to run key sizing checks with a fast pass/fail approach.

Position your current car key shell next to candidate photos or items using consistent top-down views and reference edges. Mark pass only if all criteria align closely; any fail means treat as a likely mismatch.

1. Outline silhouette: Compare perimeters and corner radii. Pass if shapes overlay with no major gaps or overlaps.
2. Seam line continuity: Align seam edges. Pass if lines match without steps or jogs.
3. Keyring loop position: Check offset from edges. Pass if location and size align.
4. Button cutout spacing: Measure center-to-center distances. Pass if spacing matches within visible tolerance.
5. Overall length and width: Measure edge-to-edge. Pass if dimensions agree on both axes.
6. Button zone depth cues: Eyeball window clearance. Pass if cutouts show even edges without rubbing signs.
7. Quick closure test simulation: Press edges together visually. Pass if no obvious stress points or persistent gaps appear.

A full pass signals a strong external size match for the car key shell housing. One or more fails indicate likely fit risks; recheck your setup or check further before proceeding.

If you are still unsure after sizing, what to verify next before buying or swapping

Car key shell sizing checks can produce mixed signals that leave you unsure when measurements align but outlines differ slightly or photos mislead on curvature.

These issues often leave compatibility unclear since external dimensions alone do not confirm internal fit. Verify next the deeper checks before buying or swapping.

Common next-layer checks focus on these categories where a size match still fails:

• Button pad mapping and button layout mismatch, which can lead to presses that do not register properly.
• Blade type and hinge constraints, often causing fit problems like poor seating or binding.
• Overall internal holder alignment, where subtle offsets create clearance issues.

A criteria-led approach confirms compatibility in these areas to reduce mismatch risks. Proceed to buying or swapping only after checks align, as unresolved issues can affect daily use.
